XKDZ1547

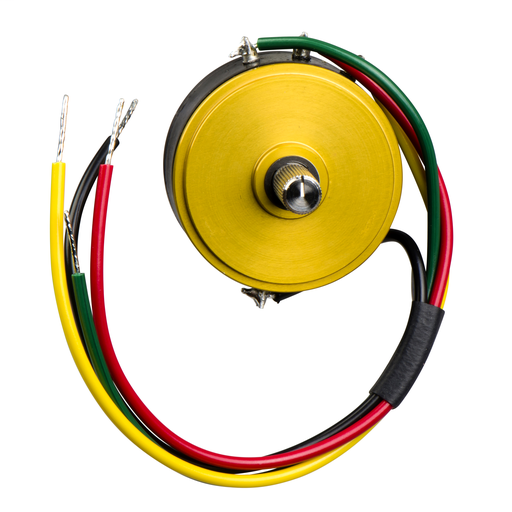

Potentiometer – 4700 Ohm – 15 mm – for XKD
This potentiometer is a separate component of the range Harmony XK, XD controllers. It provides a resistance value of 4700 Ohms and a continuous rotational operation, 360° angle. It features flying leads from soldered standard tags connections. It is compatible with XKD and XKM controllers. It is designed for applications requiring an extended neutral zone. It weighs 55g. It is designed for medium and heavy hoisting applications. It is UTE 93265 compliant.
Add to Quote CatalogueSpecifications
| Part Number | XKDZ1547 |
|---|---|
| Country of Origin | FR |
| UPC | 389110601336 |
| UPC11 | 38911060133 |
| EAN | 3389110601336 |
| Availability | N |
| Lead Time | 22 |
| UNSPSC | 39122227 |
| ECCN | EAR99 |
| HTs Code | 8533390080 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | No |
| Weight | 0.12 pound |
Characteristics
| Product Or Component Type | Controllers separate parts |
|---|---|
| Accessory / Separate Part Cate | Control accessories |
| Product Specific Application | Medium hoisting applications Heavy hoisting applications |
| Product Compatibility | XKM XKD |
| Accessory / Separate Part Type | Potentiometer |
| Condition Of Use | For applications requiring an extended neutral zone |
| Ohmic Value | 4700 Ohm |
| Size | 15 mm |
| Standards | UTE 93-265 |
| Potentiometer Characteristic | Continuous rotational operation Linear function |
| Operating Angle | 360 ° |
| Mechanical Durability | 3000000 cycles |
| Centre Tap | Wired out to terminal |
| Centre Tap Dead Zone | 30 ° |
| Power Dissipation In W | 3 W 185 °F (85 °C) |
| Connections - Terminals | Flying leads from soldered standard tags |
| Product Weight | 0.12 lb(US) (0.055 kg) |
| Mounting Mode | By the body |
| Category | 22474 - PUSHBUTTON,CRANE JOYSTICKS |
| Discount Schedule | I |
| GTIN | 03389110601336 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
