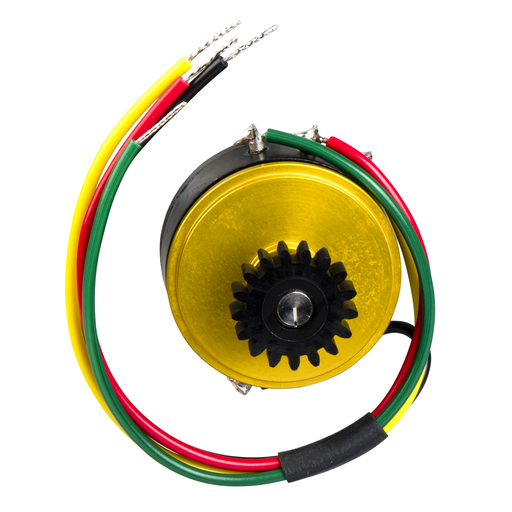

XKZA15100
Potentiometer -10000 Ohm – for XKB XKD XKM
This potentiometer is a separate component of the range Harmony XK, XD controllers. It provides a resistance value of 10000 Ohms and a continuous rotational operation, 360° angle. It features flying leads from soldered standard tags connections. It is designed for standard applications. It weighs 60g. It is designed for light, medium and heavy hoisting applications.
Add to Quote CatalogueSpecifications
| Part Number | XKZA15100 |
|---|---|
| Country of Origin | FR |
| UPC | 785901850038 |
| UPC11 | 78590185003 |
| EAN | 3389110634112 |
| Availability | N |
| Lead Time | 20 |
| UNSPSC | 39122227 |
| ECCN | EAR99 |
| HTs Code | 8533408070 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | I |
| Return Indicator | No |
| Weight | 0.13 pound |
Characteristics
| Product Or Component Type | Controllers separate parts |
|---|---|
| Accessory / Separate Part Cate | Control accessories |
| Product Specific Application | Medium hoisting applications Heavy hoisting applications Light hoisting applications |
| Product Compatibility | XKB XKD XKM |
| Accessory / Separate Part Type | Potentiometer |
| Condition Of Use | For standard applications |
| Ohmic Value | 10000 Ohm |
| Size | 15 mm |
| Standards | UTE 93-265 |
| Potentiometer Characteristic | Linear function Continuous rotational operation |
| Operating Angle | 360 ° |
| Mechanical Durability | 3000000 cycles |
| Centre Tap | Wired out to terminal |
| Centre Tap Dead Zone | 2 ° +/- 1 % |
| Power Dissipation In W | 3 W 185 °F (85 °C) |
| Connections - Terminals | Flying leads from soldered standard tags |
| Product Weight | 0.13 lb(US) (0.06 kg) |
| Mounting Mode | By the body |
| Category | 22474 - PUSHBUTTON,CRANE JOYSTICKS |
| Discount Schedule | I |
| GTIN | 00785901850038 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
