PM5563 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms, w remote display
METSEPM5563RD
PM5563 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms, w remote display

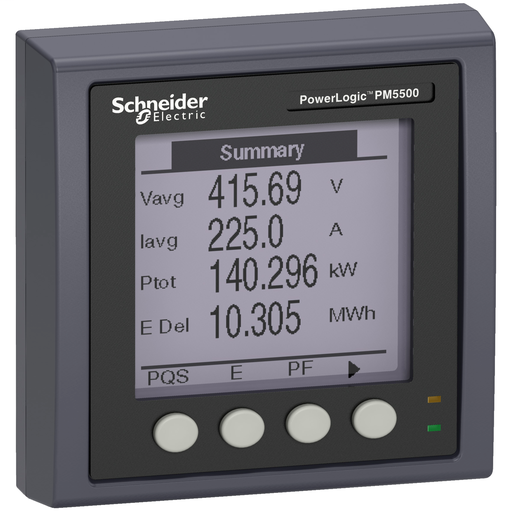

This device is a DIN-mount energy meter with an additional 96mm by 96mm backlit LCD remote display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).

Add to Quote Catalogue
Specifications
Part Number METSEPM5563RD
Country of Origin IN
UPC 785901553496
UPC11 78590155349
EAN 3606480761416
Availability N
Lead Time 31
UNSPSC 39121106
HTs Code 9028300000
Prop 65 This product can expose you to chemicals including: Dichloromethane (Methylene chloride) and Bisphenol A (BPA) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule PL1
Return Indicator Yes
Depth 2.83 inch
Height 3.78 inch
Width 3.78 inch
Weight 15.87 ounce
Characteristics
Range PowerLogic
Product Name PowerLogic PM5000
Device Short Name PM5563
Product Or Component Type Power meter
Power Quality Analysis up to the 63rd harmonic
Metering Type Measured neutral current Calculated ground current
Device Application Gateway Power monitoring WAGES metering Multi-tariff
Type Of Measurement Current Voltage Frequency Power factor Energy Active and reactive power
Supply Voltage 125...250 V DC 100...480 V AC 45...65 Hz
Network Frequency 50 Hz 60 Hz
In Rated Current 1 A 5 A
Type Of Network 1P + N 3P 3P + N
Power Consumption In Va 10 VA 480 V
Ride-Through Time 35 ms 120 V AC typical 129 ms 230 V AC typical
Display Type Remote LCD display
Display Resolution 128 x 128 pixels
Sampling Rate 128 samples/cycle
Measurement Current 5…10000 mA
Analogue Input Type voltage 5 MOhm) current 0.3 MOhm)
Measurement Voltage 20…400 V AC 45...65 Hz between phase and neutral 20…690 V AC 45...65 Hz between phases
Frequency Measurement Range 45…65 Hz
Number Of Inputs 4 digital
Measurement Accuracy Apparent power +/- 0.5 % Frequency +/- 0.05 % Active energy +/- 0.2 % Reactive energy +/- 1 % Active power +/- 0.2 % Voltage +/- 0.1 % Power factor +/- 0.05 % Current +/- 0.15 °C
Accuracy Class Class 0.2S active energy IEC 62053-22
Number Of Outputs 2 digital
Information Displayed Tariff 8)
Communication Port Protocol Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V JBUS Modbus TCP/IP 10/100 Mbit/s 2500 V Ethernet Modbus TCP/IP daisy chain BACnet IP
Communication Port Support RS485 Ethernet
Communication Gateway Ethernet/serial
Data Recording Time stamping Data logs Maintenance logs Event logs Alarm logs Min/max of instantaneous values
Memory Capacity 1.1 MB
Web Services Diagnostic via predefined web pages Real time viewing of data Web server Alarm notification by e-mail
Ethernet Service SNTP client SNMP-Traps
Connections - Terminals Voltage circuit screw terminal block4 Control circuit screw terminal block2 Current transformer screw terminal block6 RS485 link screw terminal block4 Digital input screw terminal block8 Digital output screw terminal block4 Ethernet network RJ45 connector2
Mounting Mode Clip-on
Mounting Support DIN rail
Standards EN 50470-3 EN 50470-1 IEC 62053-22 IEC 60529 UL 61010-1 IEC 62053-24 IEC 61557-12 ANSI C12.20
Product Certifications CE IEC 61010-1 CULus UL 61010-1 BTL
Width 3.78 in (96 mm)
Depth 2.83 in (72 mm)
Height 3.78 in (96 mm)
Product Weight 15.87 oz (450 g)
Electromagnetic Compatibility Limits for harmonic current emissionsclass A IEC 61000-3-2 Conducted RF disturbanceslevel 3 IEC 61000-4-6 Magnetic field at power frequencylevel 4 IEC 61000-4-8 Conducted and radiated emissionsclass B EN 55022 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage IEC 61000-3-3 Electrostatic discharge 8 kVlevel 4 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3 Electrical fast transient/burst immunity testlevel 4 IEC 61000-4-4 Surge immunity testlevel 4 IEC 61000-4-5 Voltage dips and interruptions immunity test IEC 61000-4-11
IP Degree Of Protection Front IP52 IEC 60529 Body IP30 IEC 60529
Relative Humidity 5…95 % 122 °F (50 °C)
Pollution Degree 2
Ambient Air Temp For Op -13…158 °F (-25…70 °C)
Ambient Air Temp For Storage -40…185 °F (-40…85 °C)
Operating Altitude 9842.52 ft (3000 m)
Category 09777 - POWERLOGIC PM5000 HARDWARE
