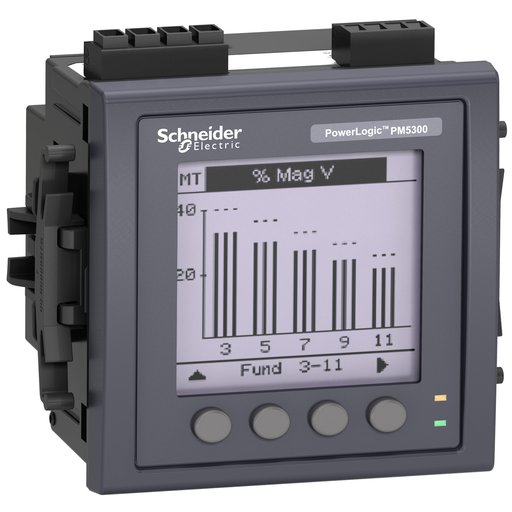

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
Add to Quote CataloguePart Number | METSEPM5340 |
---|---|
Country of Origin | IN |
UPC | 785901646617 |
UPC11 | 78590164661 |
EAN | 3606480624520 |
Availability | N |
Lead Time | 24 |
UNSPSC | 39121106 |
ECCN | EAR99 |
HTs Code | 9030333800 |
Prop 65 | This product can expose you to chemicals including: Dichloromethane (Methylene chloride) and Bisphenol A (BPA) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | PL1 |
Return Indicator | Yes |
Depth | 2.83 inch |
Height | 3.78 inch |
Width | 3.78 inch |
Weight | 15.17 ounce |
Range | PowerLogic |
---|---|
Product Name | PowerLogic PM5000 |
Device Short Name | PM5340 |
Product Or Component Type | Power meter |
Power Quality Analysis | up to the 31st harmonic |
Device Application | Multi-tariff Power monitoring |
Type Of Measurement | Current Voltage Frequency Power factor Energy Active and reactive power |
Supply Voltage | 100...415 V AC 45...65 Hz 125...250 V DC |
Network Frequency | 60 Hz 50 Hz |
In Rated Current | 5 A 1 A |
Type Of Network | 3P 1P + N 3P + N |
Power Consumption In Va | 10 VA 415 V |
Ride-Through Time | 80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical |
Display Type | Backlit LCD |
Display Resolution | 128 x 128 pixels |
Sampling Rate | 64 samples/cycle |
Measurement Current | 10…9000 mA |
Analogue Input Type | voltage 5 MOhm) current 0.3 MOhm) |
Measurement Voltage | 35…690 V AC 45...65 Hz between phases 20…400 V AC 45...65 Hz between phase and neutral |
Frequency Measurement Range | 45…65 Hz |
Number Of Inputs | 2 digital |
Measurement Accuracy | Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.005 % Current +/- 0.5 % Voltage +/- 0.5 % |
Accuracy Class | Class 0.5S active energy IEC 62053-22 |
Number Of Outputs | 2 relay 2 digital |
Information Displayed | Tariff 4) |
Communication Port Protocol | Modbus TCP/IP 10/100 Mbit/s 2500 V |
Communication Port Support | Ethernet |
Data Recording | Data logs Alarm logs Time stamping Event logs Min/max of instantaneous values Maintenance logs |
Memory Capacity | 256 kB |
Connections - Terminals | Voltage circuit screw terminal block4 Control circuit screw terminal block2 Current transformer screw terminal block6 Input/output circuit screw terminal block6 Relay output screw terminal block4 Ethernet network RJ45 connector |
Mounting Mode | Flush-mounted |
Mounting Support | Framework |
Standards | EN 50470-1 IEC 62053-24 IEC 60529 UL 61010-1 IEC 62053-22 EN 50470-3 IEC 61557-12 |
Product Certifications | CE IEC 61010-1 CULus UL 61010-1 |
Width | 3.78 in (96 mm) |
Depth | 2.83 in (72 mm) |
Height | 3.78 in (96 mm) |
Product Weight | 15.17 oz (430 g) |
Electromagnetic Compatibility | Limits for harmonic current emissionsclass A IEC 61000-3-2 Electrostatic dischargelevel 4 IEC 61000-4-2 Conducted RF disturbanceslevel 3 IEC 61000-4-6 Magnetic field at power frequencylevel 4 IEC 61000-4-8 Conducted and radiated emissionsclass B EN 55022 |
IP Degree Of Protection | Front IP52 IEC 60529 Body IP30 IEC 60529 |
Relative Humidity | 5…95 % 122 °F (50 °C) |
Pollution Degree | 2 |
Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
Operating Altitude | 6561.68 ft (2000 m) |
Category | 09777 - POWERLOGIC PM5000 HARDWARE |
Discount Schedule | PL1 |
GTIN | 00785901646617 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | IN |
