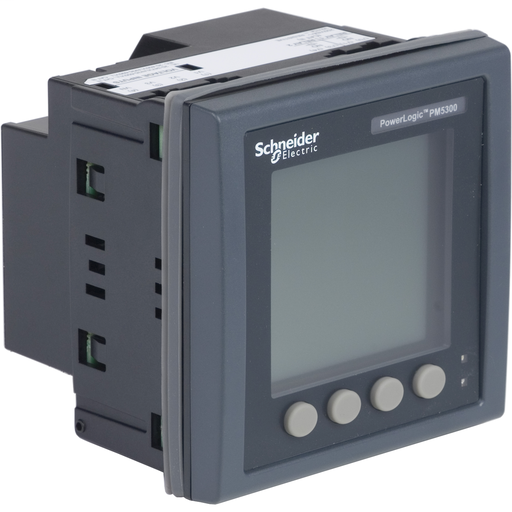

PM5330 Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms
METSEPM5330
PM5330 Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

Add to Quote Catalogue
Specifications
Part Number METSEPM5330
Country of Origin IN
UPC 785901860662
UPC11 78590186066
EAN 3606480614026
Availability N
Lead Time 43
UNSPSC 39121106
HTs Code 9030390100
Prop 65 This product can expose you to chemicals including: Dichloromethane (Methylene chloride) and Bisphenol A (BPA) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule PL1
Return Indicator Yes
Depth 2.83 inch
Height 3.78 inch
Width 3.78 inch
Weight 15.17 ounce
Characteristics
Range PowerLogic
Product Name PowerLogic PM5000
Device Short Name PM5330
Product Or Component Type Power meter
Power Quality Analysis up to the 31st harmonic
Device Application Power monitoring Multi-tariff
Type Of Measurement Current Voltage Frequency Power factor Energy Active and reactive power
Supply Voltage 100...415 V AC 45...65 Hz 125...250 V DC
Network Frequency 50 Hz 60 Hz
In Rated Current 1 A 5 A
Type Of Network 3P + N 3P 1P + N
Power Consumption In Va 10 VA 415 V
Ride-Through Time 80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical
Display Type Backlit LCD
Display Resolution 128 x 128 pixels
Sampling Rate 64 samples/cycle
Measurement Current 10…9000 mA
Analogue Input Type voltage 5 MOhm) current 0.3 MOhm)
Measurement Voltage 35…690 V AC 45...65 Hz between phases 20…400 V AC 45...65 Hz between phase and neutral
Frequency Measurement Range 45…65 Hz
Number Of Inputs 2 digital
Measurement Accuracy Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.005 % Current +/- 0.5 % Voltage +/- 0.5 %
Accuracy Class Class 0.5S active energy IEC 62053-22
Number Of Outputs 2 relay 2 digital
Information Displayed Tariff 4)
Communication Port Protocol Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V JBUS
Communication Port Support RS485
Data Recording Maintenance logs Time stamping Alarm logs Data logs Min/max of instantaneous values Event logs
Memory Capacity 256 kB
Connections - Terminals Voltage circuit screw terminal block4 Control circuit screw terminal block2 Current transformer screw terminal block6 Input/output circuit screw terminal block6 Relay output screw terminal block4 Ethernet network RJ45 connector
Mounting Mode Flush-mounted
Mounting Support Framework
Standards UL 61010-1 IEC 62053-22 IEC 61557-12 EN 50470-3 IEC 60529 IEC 62053-24 EN 50470-1
Product Certifications CE IEC 61010-1 CULus UL 61010-1
Width 3.78 in (96 mm)
Depth 2.83 in (72 mm)
Height 3.78 in (96 mm)
Product Weight 15.17 oz (430 g)
Electromagnetic Compatibility Limits for harmonic current emissionsclass A IEC 61000-3-2 Electrostatic dischargelevel 4 IEC 61000-4-2 Conducted RF disturbanceslevel 3 IEC 61000-4-6 Magnetic field at power frequencylevel 4 IEC 61000-4-8 Conducted and radiated emissionsclass B EN 55022
IP Degree Of Protection Front IP52 IEC 60529 Body IP30 IEC 60529
Relative Humidity 5…95 % 122 °F (50 °C)
Pollution Degree 2
Ambient Air Temp For Op -13…158 °F (-25…70 °C)
Ambient Air Temp For Storage -40…185 °F (-40…85 °C)
Operating Altitude 6561.68 ft (2000 m)
Category 09777 - POWERLOGIC PM5000 HARDWARE
Discount Schedule PL1
GTIN 00785901860662
Nbr. Of Units In Pkg. 1
Country Of Origin IN
