PM3250 power meter – RS485
METSEPM3250
PM3250 power meter – RS485

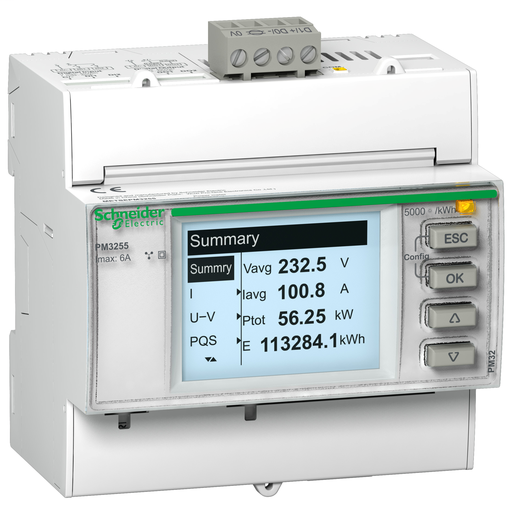

PM3250 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Add to Quote Catalogue
Specifications
Part Number METSEPM3250
Country of Origin CN
UPC 785901009979
UPC11 78590100997
EAN 3606480481604
Availability N
Lead Time 35
UNSPSC 41113708
HTs Code 9028300000
RoHS Compliant Yes
Discount Schedule PL1
Return Indicator No
Depth 2.76 inch
Height 3.74 inch
Width 3.54 inch
Weight 0.57 pound
Characteristics
Range PowerLogic
Product Name PowerLogic PM3000
Device Short Name PM3250
Product Or Component Type Power meter
Power Quality Analysis up to the 15th harmonic
Device Application Multi-tariff Power monitoring Sub billing
Type Of Measurement Active and reactive power Apparent power Current Voltage Energy Power factor Frequency Total current harmonic distortion THD (I) Total voltage harmonic distortion THD (U)
Supply Voltage 100...277 V AC 45...65 Hz 173...480 V AC 45...65 Hz 100...300 V DC
Network Frequency 60 Hz 50 Hz
In Rated Current 5 A 1 A
Type Of Network 1P + N 3P 3P + N
Power Consumption In Va 5 VA
Display Type Backlit LCD
Display Resolution 128 x 96 pixels
Sampling Rate 32 samples/cycle
Measurement Current 0.02…1.2 A 0.05…6 A
Analogue Input Type current 0...5 A current 0...1 A
Measurement Voltage 50…330 V AC 45...65 Hz direct 50…330 V AC 45...65 Hz phase to neutral 80…570 V AC 45...65 Hz direct 80…570 V AC 45...65 Hz phase to phase 570…999000 V AC 45...65 Hz with external VT
Frequency Measurement Range 45…65 Hz
Measurement Accuracy Current 0.3 % 0.5...6 A Current 0.5 % 0.1...1.2 A Voltage 0.3 % 50...330 V Voltage 0.3 % 80...570 V
Accuracy Class Class 0.5S active energy IEC 62053-22 Class 1 active energy IEC 62053-21 Class 2 reactive energy IEC 62053-23 Class C active energy EN 50470-3
Information Displayed Tariff 4)
Communication Port Protocol Modbus 9.6...38.4 kbauds
Communication Port Support RS485
Data Recording Time stamping Min/max of instantaneous values 5 alarms
Mounting Mode Clip-on
Mounting Support DIN rail
Standards IEC 61557-12 EN 50470-3 EN 61010-1 EN 50470-1 EN 61557-12 UL 61010-1 IEC 62052-11
Product Certifications CE EN 61010-1 CULus UL 61010-1 UL
Width 3.54 in (90 mm)
Depth 2.76 in (70 mm)
Height 3.74 in (95 mm)
Product Weight 0.57 lb(US) (0.26 kg)
Electromagnetic Compatibility Electrostatic dischargelevel 4 IEC 61000-4-2 Susceptibility to electromagnetic fieldslevel 3 IEC 61000-4-3 Electrical fast transient/burst immunity testlevel 4 IEC 61000-4-4 1.2/50 µs shock waves immunity testlevel 4 IEC 61000-4-5 Conducted RF disturbanceslevel 3 IEC 61000-4-6 Magnetic field at power frequency 0.5 mT IEC 61000-4-8 Conducted and radiated emissionsclass B EN 55022
Overvoltage Category III
IP Degree Of Protection Front panel IP40 IEC 60529 Body IP20 IEC 60529
Relative Humidity 5…95 % 122 °F (50 °C)
Pollution Degree 2
Ambient Air Temp For Op -13…131 °F (-25…55 °C)
Ambient Air Temp For Storage -40…185 °F (-40…85 °C)
Operating Altitude 0...9842.52 ft (0...3000 m)
Category 09786 - SE ENTRY POWER METER
Discount Schedule PL1
GTIN 00785901009979
Nbr. Of Units In Pkg. 1
Country Of Origin CN
Green Premium Status Green Premium product
EU RoHs Directive Compliant
