| Range |
PowerLogic |
| Product Name |

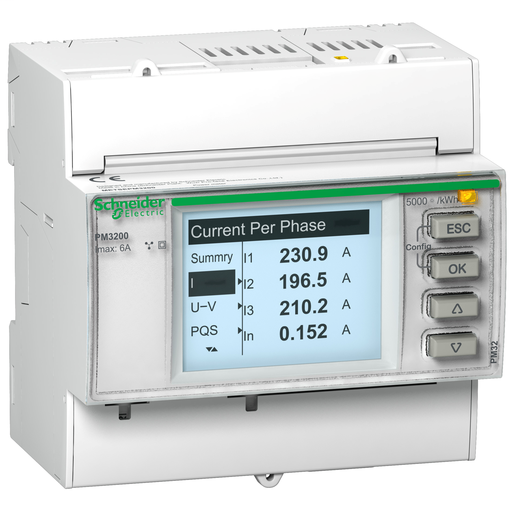

PowerLogic PM3000 |
| Device Short Name |
PM3200 |
| Product Or Component Type |
Power meter |
| Power Quality Analysis |
up to the 15th harmonic |
| Device Application |
Multi-tariff
Sub billing
Power monitoring |
| Type Of Measurement |
Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency |
| Supply Voltage |
100...277 V AC 45...65 Hz
173...480 V AC 45...65 Hz
100...300 V DC |
| Network Frequency |
50 Hz
60 Hz |
| In Rated Current |
5 A
1 A |
| Type Of Network |
3P + N
3P
1P + N |
| Power Consumption In Va |
5 VA |
| Display Type |
Backlit LCD |
| Display Resolution |
128 x 96 pixels |
| Sampling Rate |
32 samples/cycle |
| Measurement Current |
0.05…6 A
0.02…1.2 A |
| Analogue Input Type |
current 0...5 A
current 0...1 A |
| Measurement Voltage |
50…330 V AC 45...65 Hz direct
50…330 V AC 45...65 Hz phase to neutral
80…570 V AC 45...65 Hz direct
80…570 V AC 45...65 Hz phase to phase
570…999000 V AC 45...65 Hz with external VT |
| Frequency Measurement Range |
45…65 Hz |
| Measurement Accuracy |
Current 0.3 % 0.5...6 A
Current 0.5 % 0.1...1.2 A
Voltage 0.3 % 50...330 V
Voltage 0.3 % 80...570 V |
| Accuracy Class |
Class 0.5S active energy IEC 62053-22
Class 1 active energy IEC 62053-21
Class 2 reactive energy IEC 62053-23
Class C active energy EN 50470-3 |
| Information Displayed |
Tariff 4) |
| Data Recording |
Min/max of instantaneous values |
| Mounting Mode |
Clip-on |
| Mounting Support |
DIN rail |
| Standards |
EN 61557-12
EN 61010-1
IEC 61557-12
EN 50470-3
UL 61010-1
EN 50470-1
IEC 62052-11 |
| Product Certifications |
CE EN 61010-1
CULus UL 61010-1
UL |
| Width |
3.54 in (90 mm) |
| Depth |
2.76 in (70 mm) |
| Height |
3.74 in (95 mm) |
| Product Weight |
0.57 lb(US) (0.26 kg) |
| Electromagnetic Compatibility |
Electrostatic dischargelevel 4 IEC 61000-4-2
Susceptibility to electromagnetic fieldslevel 3 IEC 61000-4-3
Electrical fast transient/burst immunity testlevel 4 IEC 61000-4-4
1.2/50 µs shock waves immunity testlevel 4 IEC 61000-4-5
Conducted RF disturbanceslevel 3 IEC 61000-4-6
Magnetic field at power frequency 0.5 mT IEC 61000-4-8
Conducted and radiated emissionsclass B EN 55022 |
| Overvoltage Category |
III |
| IP Degree Of Protection |
Front panel IP40 IEC 60529
Body IP20 IEC 60529 |
| Relative Humidity |
5…95 % 122 °F (50 °C) |
| Pollution Degree |
2 |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Operating Altitude |
0...9842.52 ft (0...3000 m) |
| Category |
09786 - SE ENTRY POWER METER |
| Discount Schedule |
PL1 |
| GTIN |
03606480481581 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CN |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Compliant |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
