XB4RFB01
Pk 22mm XB4R non-programmable rec 24VDC

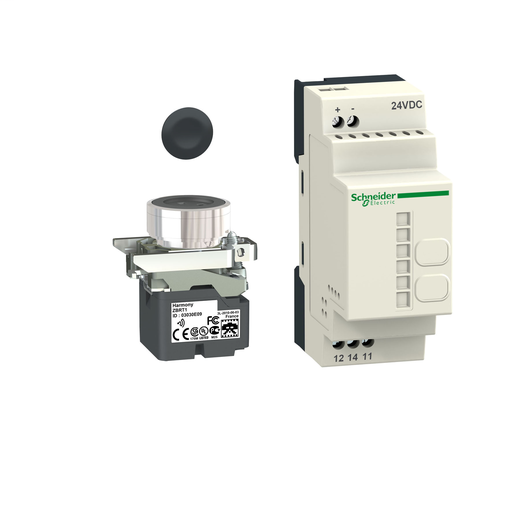

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB4R metal. This pack comprises one wireless and batteryless metallic pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. This technology also allows an operator to be mobile or have a control mounted on-board of a vehicle (trolley, truck, etc.). The pushbutton is always available and requires no maintenance (no battery needed).
Add to Quote CatalogueSpecifications
| Part Number | XB4RFB01 |
|---|---|
| Country of Origin | FR |
| UPC | 785901910114 |
| UPC11 | 78590191011 |
| EAN | 3606480436024 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony XB4R |
|---|---|
| Product Or Component Type | Wireless and batteryless package |
| Device Short Name | XB4R |
| Head Material | Metal |
| Kit Composition | 1 metal push-button, 1 receiver and 1 set of caps |
| Frequency | 2405 MHz transmitter 2405 MHz receiver |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Device Composition | ZB4BZ009 ZB4RZA0 ZBRT1 Paired receiver ZBA79 |
| Control Type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Type Of Receiver | Non-programmable receiver 1 relay) |
| [Us] Rated Supply Voltage | 24 V DC |
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Product Certifications | CCC C-tick GOST CSA UL |
| Marking | CE |
| Standards | UL 508 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 |
| Radio Agreement | ARIB T66 RSS ICASA SRRC FCC ANATEL |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901910114 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
