XB5AVM5

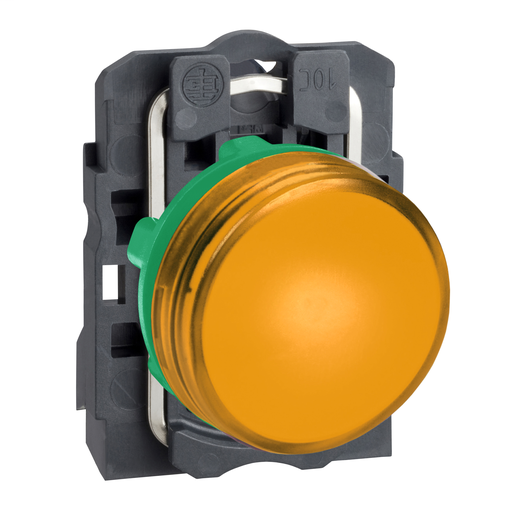

Pilot light, plastic, orange, Ø22, plain lens with integral LED, 230…240 V AC
This Harmony XB5, plain lens modular orange pilot light is supplied with 230V to 240V AC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Add to Quote CatalogueSpecifications
| Part Number | XB5AVM5 |
|---|---|
| Country of Origin | FR |
| UPC | 785901942306 |
| UPC11 | 78590194230 |
| EAN | 3389110903874 |
| Availability | N |
| Lead Time | 28 |
| UNSPSC | 39121534 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Depth | 2.13 inch |
| Height | 1.65 inch |
| Width | 1.18 inch |
| Weight | 0.08 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB5 |
| Bezel Material | Dark grey plastic |
| Fixing Collar Material | Plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Cap/Operator Or Lens Colour | Orange |
| Operator Add Information | With plain lens |
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Source Colour | Orange |
| Us Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Device Presentation | Complete product |
| Height | 1.65 in (42 mm) |
| Width | 1.18 in (30 mm) |
| Depth | 2.13 in (54 mm) |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.08 lb(US) (0.038 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Ui Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 4 kV EN 60947-1 |
| Signalling Type | Steady |
| Gcr Bridge | XB5AVCUST05 |
| Compatibility Code | XB5 |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | CSA UL Listed |
| Vibration Resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Electromagnetic Compatibility | Electrostatic discharge 6 kV on contact (on metal parts)) IEC 61000-4-2 Electrostatic discharge 8 kV in free air (in insulating parts)) IEC 61000-4-2 Electromagnetic emissionclass B IEC 55011 |
| Resist Electrostatic Dischrg | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission | Class B IEC 55011 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
