XB4BVB1

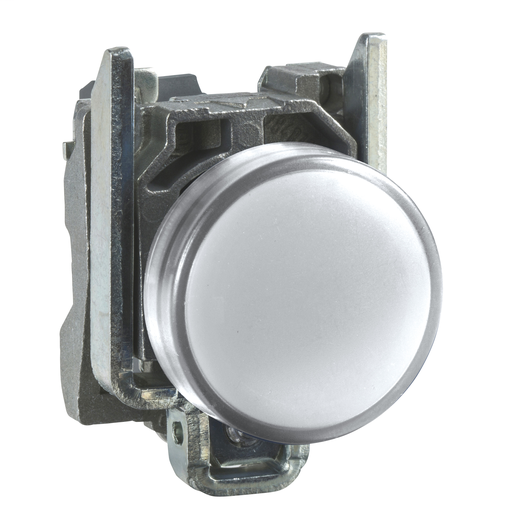

Pilot light, metal, white, Ø22, plain lens with integral LED, 24 V AC/DC
This Harmony XB4 plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XB4BVB1 |
|---|---|
| Country of Origin | FR |
| UPC | 785901381273 |
| UPC11 | 78590138127 |
| EAN | 3389110891911 |
| Availability | S |
| Lead Time | 33 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Depth | 2.13 inch |
| Height | 1.85 inch |
| Width | 1.18 inch |
| Weight | 0.18 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB4 |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 0.87 in (22 mm) |
| Head Type | Standard |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Cap/Operator Or Lens Colour | White |
| Operator Add Information | With plain lens |
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Source Colour | White |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Height | 1.85 in (47 mm) |
| Width | 1.18 in (30 mm) |
| Depth | 2.13 in (54 mm) |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.18 lb(US) (0.08 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Ui Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 4 kV EN 60947-1 |
| Signalling Type | Steady |
| Current Consumption | 18 mA |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Device Presentation | Complete product |
| Supply Voltage Limits | 19.2…30 V DC 21.6…26.4 V AC |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class I IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK06 IEC 50102 |
| Standards | UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 EN/IEC 60947-5-5 JIS C8201-1 |
| Product Certifications | UL Listed CSA |
| Vibration Resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission | Class B IEC 55011 |
| Category | 22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901381273 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
Documents
- Marine Certificate (DNV-GL-TAE00001C8_2017-01-22)
- End Of Life Manual (ENVEOLI1808008EN)
- Product Environmental (ENVPEP070101EN)
- Product Environmental (ENVPEP1808008EN)
- Instruction Sheet (65013-037-26)
- Instruction Sheet (W915599610111)
- Instruction Sheet (155997103A55)
- Instruction Sheet (155997101A55)
- Handout (9001HO1307)
