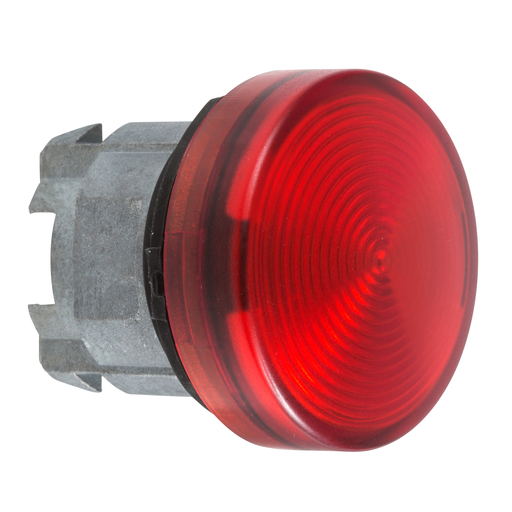

Pilot light head ZB4BV04 sold by 100
ZB4BV04TQ
Pilot light head ZB4BV04 sold by 100
Specifications
Part Number ZB4BV04TQ
UPC 389110880007
UPC11 38911088000
EAN 3389110880007
Characteristics
Range Of Product Harmony XB4
Product Or Component Type Head for pilot light
Product Compatibility BA 9s
Device Short Name ZB4
Bezel Material Chromium plated metal
Mounting Diameter 0.87 in (22 mm)
Sale Per Indivisible Qty 100
Shape Of Signaling Unit Head Round
Cap/Operator Or Lens Colour Red
Operator Add Information With plain lens
Cad Overall Width 1.14 in (29 mm)
Cad Overall Height 1.14 in (29 mm)
Cad Overall Depth 1.22 in (31 mm)
Resistance High Press Washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Electrical Composition Code P3 front mounting BA 9s P4 front mounting BA 9s and transformer
Protective Treatment TH
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -40…158 °F (-40…70 °C)
Overvoltage Category Class I IEC 60536
IP Degree Of Protection IP66 IEC 60529 IP67 IP69 IP69K
Nema Degree Of Protection NEMA 13 NEMA 4X
IK Degree Of Protection IK06 IEC 50102
Standards EN/IEC 60947-5-5 UL 508 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1
Vibration Resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
GTIN 03389110880007
Warranty 18 months
