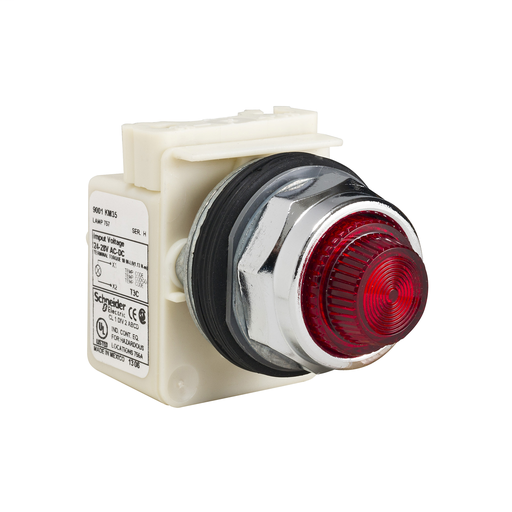

PILOT LIGHT 28V 30MM TYPE K +OPTIONS
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. It weighs 134g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Add to Quote CatalogueSpecifications
| Part Number | 9001KP35R31 |
|---|---|
| Country of Origin | MX |
| UPC | 785901032892 |
| UPC11 | 78590103289 |
| EAN | 3389118041219 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39121534 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | K |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Lens Type | Fresnel plastic |
| Cap/Operator Or Lens Colour | Red |
| Light Source | incandescent |
| Bulb Base | BA 9s |
| Light Block Supply | Full voltage 28 V Direct 24 V |
| Connections - Terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Shape Of Screw Head | Round |
| Operating Position | Any position |
| [Us] Rated Supply Voltage | 24...28 V AC/DC |
| Operating Mode | Normal |
| Device Presentation | Complete product |
| Product Certifications | CE CSA LR25490 class 3211 03 UL listed file E42259 CCN NKCR |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901032892 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
