| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

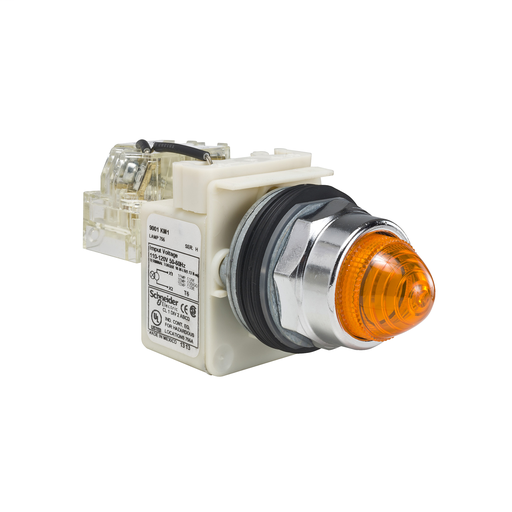

Pilot light |
| Device Short Name |
K |
| Bezel Material |
Chromium plated metal |
| Mounting Diameter |
1.18 in (30 mm) |
| Lens Type |
Domed plastic |
| Cap/Operator Or Lens Colour |
Amber |
| Light Block Supply |
Via transformer 110 V AC 50/60 Hz
Via transformer 120 V AC 50/60 Hz |
| Shape Of Screw Head |
Round |
| Operating Mode |
Push-to-test |
| Product Certifications |
CE
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR |
| Nema Degree Of Protection |
NEMA 1/2/3/3R/4/6/12/13 |
| Category |
21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule |
CS1 |
| GTIN |
00785901043607 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
