9001KT38LYY31

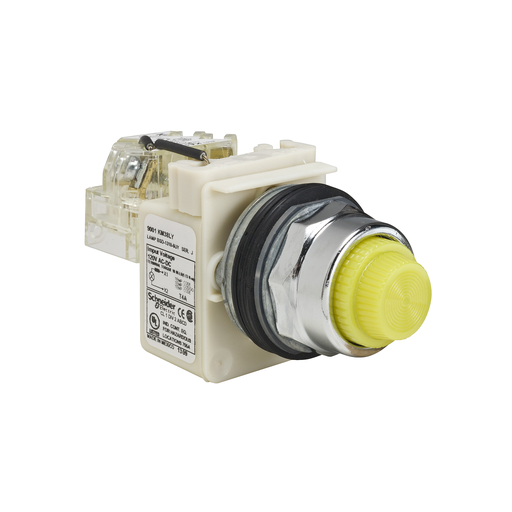

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS
Specifications
| Part Number | 9001KT38LYY31 |
|---|---|
| Country of Origin | MX |
| UPC | 785901036210 |
| UPC11 | 78590103621 |
| EAN | 0785901036210 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39121534 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | K |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Lens Type | Fresnel plastic |
| Cap/Operator Or Lens Colour | Yellow |
| Light Source | Yellow LED |
| Light Block Supply | Direct 120 V |
| Shape Of Screw Head | Round |
| Operating Mode | Push-to-test |
| Product Certifications | CE CSA LR25490 class 3211 03 UL listed file E42259 CCN NKCR |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901036210 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
