| Range Of Product |
OsiSense XU |
| Series Name |
General purpose single mode |
| Electronic Sensor Type |

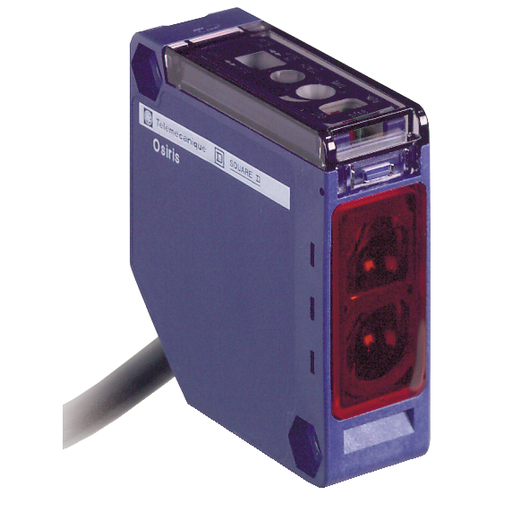

Photo-electric sensor |
| Sensor Name |
XUK |
| Sensor Design |
Compact 50 x 50 |
| Detection System |
Multimode |
| Material |
Plastic |
| Type Of Output Signal |
Discrete |
| Supply Circuit Type |
AC/DC |
| Wiring Techniquees |
5-wire |
| Discrete Output Function |
1 C/O |
| Emission |
Infrared multimode |
| Enclosure Material |
PBT |
| Lens Material |
PMMA |
| Output Type |
Relay output |
| Wire Insulation Material |
PVC |
| Status Led |
1 LED green)supply on
1 LED yellow)output state
1 LED red)alignment |
| Us Rated Supply Voltage |
20...240 V AC/DC |
| Supply Voltage Limits |
20…264 V AC |
| Output Voltage |
<= 250 V AC/DC |
| Switching Capacity In Ma |
3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Switching Frequency |
<= 20 Hz |
| Current Consumption |
<= 35 mA no-load |
| Delay First Up |
15 ms |
| Delay Response |
2 ms |
| Delay Recovery |
2 ms |
| Setting-Up |
Without sensitivity adjustment |
| Depth |
1.97 in (50 mm) |
| Height |
1.97 in (50 mm) |
| Width |
0.71 in (18 mm) |
| Product Weight |
0.15 lb(US) (0.07 kg) |
| Product Certifications |
UL
CSA
CE |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Vibration Resistance |
7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6 |
| Shock Resistance |
30 gn 11 ms) IEC 60068-2-27 |
| IP Degree Of Protection |
IP65 double insulation IEC 60529 |
| Category |
22481 - SENSORS, PHOTOELECTRIC |
| Discount Schedule |
DS2 |
| GTIN |
03389119085083 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Warranty |
18 months |
