| Range Of Product |
OsiSense XU |
| Series Name |
General purpose single mode |
| Electronic Sensor Type |
Photo-electric sensor |
| Sensor Name |
XUC |
| Sensor Design |
Compact |
| Detection System |
Polarised reflex |
| Material |
Plastic |
| Type Of Output Signal |
Discrete |
| Supply Circuit Type |
AC/DC |
| Wiring Techniquees |
5-wire |
| Discrete Output Function |
1 C/O |
| Electrical Connection |
1 male connector, 5 pins |
| Emission |
Red polarised reflex |
| Sn Nominal Sensing Distance |
19.69 ft (6 m) polarised reflex need reflector XUZC50 |
| Enclosure Material |
PC |
| Lens Material |
PMMA |
| Maximum Sensing Distance |
29.53 ft (9 m) with reflector 50 x 50 mm |
| Output Type |
Solid state |
| Output Function Governance |
Light or dark programmable |
| Add On Output |
Without |
| Wire Insulation Material |
PVC |
| Status Led |
1 LED yellow)output state |
| Us Rated Supply Voltage |
12...24 V DC |
| Supply Voltage Limits |
20…264 V AC |
| Output Voltage |
<= 250 V AC |
| Switching Capacity In Ma |
<= 100 mA overload and short-circuit protection) |
| Switching Frequency |
<= 250 Hz |
| Voltage Drop |
<1.5 V closed state) |
| Current Consumption |
<= 35 mA no-load |
| Power Consumption In W |
2 W |
| Time Delay Range |
0...15 s monostable, on-delay or off-delay (programmable) |
| Delay First Up |
60 ms |
| Delay Response |
2 ms |
| Delay Recovery |
2 ms |
| Setting-Up |
Without sensitivity adjustment |
| Electrical Durability |
500000 cycles 3000 mA 1 60 cyc/mn 250 V |
| Depth |
1.97 in (50 mm) |
| Height |
1.97 in (50 mm) |
| Width |
0.71 in (18 mm) |
| Product Weight |
0.49 lb(US) (0.22 kg) |

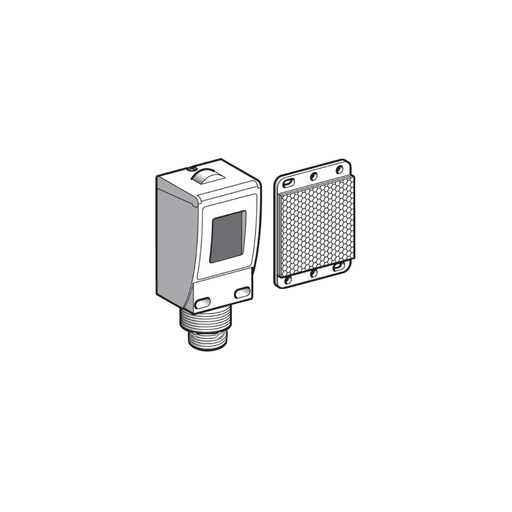

| Kit Composition |
Reflector XUZC50
Sensor |
| Product Certifications |
CE
UL
CSA |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Vibration Resistance |
7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6 |
| Shock Resistance |
30 gn 11 ms) IEC 60068-2-27 |
| IP Degree Of Protection |
IP65 double insulation IEC 60529 |
| Nema Degree Of Protection |
NEMA 12IEC 60529
NEMA 13IEC 60529
NEMA 3IEC 60529
NEMA 4IEC 60529
NEMA 4XIEC 60529
NEMA 6IEC 60529
NEMA 6PIEC 60529 |
| Category |
22481 - SENSORS, PHOTOELECTRIC |
| Discount Schedule |
DS2 |
