XB5PUSB3

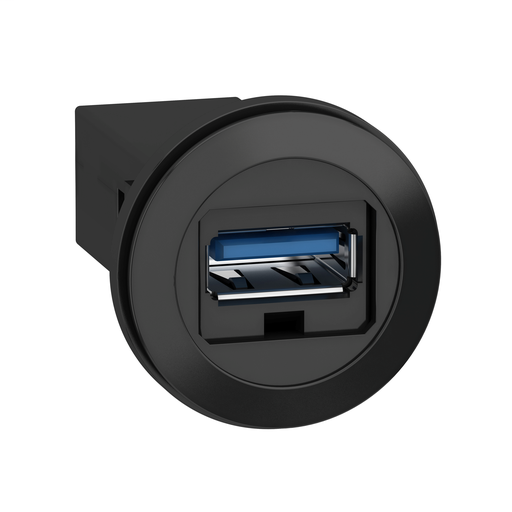

Panel mounted USB 3.0 port, plastic, Ø22, for USB interface jack type A
This Harmony XB5, panel mounted USB port enables connection to your machine of USB devices. This panel mounted USB port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet doorIt is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet. It is easily installed into standard 22mm diameter cut-outs.
Add to Quote CatalogueSpecifications
| Part Number | XB5PUSB3 |
|---|---|
| Country of Origin | DE |
| UPC | 785901714699 |
| UPC11 | 78590171469 |
| EAN | 3606481194206 |
| Availability | N |
| Lead Time | 67 |
| HTs Code | 8536698000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Depth | 1.73 inch |
| Height | 1.10 inch |
| Width | 1.10 inch |
| Weight | 0.04 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Panel mounted USB port |
| Device Short Name | XB5P |
| Sale Per Indivisible Qty | 1 |
| Mounting Diameter | 0.87 in (22 mm) |
| Thickness | 0.24 in (6 mm) without protection cover 0.06…0.20 in (1.5…5 mm) with protection cover plastic 0.06…0.20 in (1.5…5 mm) with protection cover rigid plastic 0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
| Bezel Material | Plastic |
| Fixing Collar Material | Plastic |
| Integrated Connection Type | USB 3.0 type A |
| Number Of Matings | 1500 cycles |
| IP Degree Of Protection | Front IP20 IEC 60529 Back IP20 IEC 60529 |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Tightening Torque | 13.28 lbf.in (1.5 N.m) |
| Vibration Resistance | 5.35 gn15 min per axis |
| Shock Resistance | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
| Standards | USB 3.0 |
| Product Certifications | CSA UL Listed |
| Height | 1.10 in (28 mm) |
| Width | 1.10 in (28 mm) |
| Depth | 1.73 in (44 mm) |
| Product Weight | 0.04 lb(US) (0.0169 kg) |
| Category | 00028 - DATA PORTS |
| Discount Schedule | CS2 |
| GTIN | 00785901714699 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
