XB5DTB24

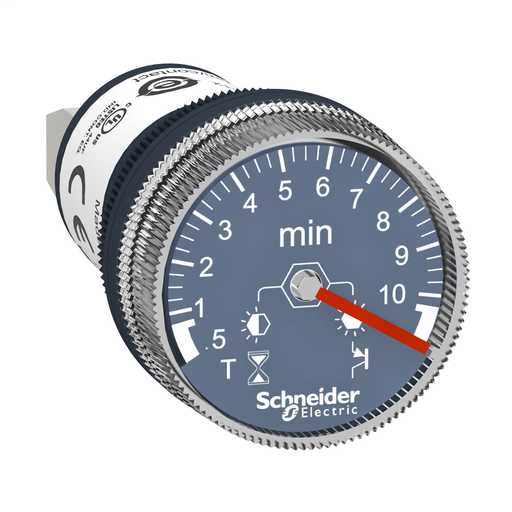

Panel mounted timer monofunction, plastic, Ø22, time delay 0.5…10 min, 24 V DC
This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5 to 10 minutes and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
Add to Quote CatalogueSpecifications
| Part Number | XB5DTB24 |
|---|---|
| Country of Origin | FR |
| UPC | 785901867760 |
| UPC11 | 78590186776 |
| EAN | 3606481205483 |
| Availability | N |
| Lead Time | 23 |
| ECCN | EAR99 |
| HTs Code | 9107004080 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Height | 2.44 inch |
| Weight | 0.06 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Sale Per Indivisible Qty | 1 |
| Product Or Component Type | Timer |
| Bezel Material | Plastic |
| Fixing Collar Material | Plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Panel Thickness | 0.24 in (6 mm) |
| Shape Of Signaling Unit Head | Round |
| Time Delay Range | 0.5...10 min |
| Time Delay Type | A |
| Repeat Accuracy | +/- 0.5 % |
| Setting Accuracy Of Time Delay | +/- 10 % of full scale 77 °F (25 °C) EN/IEC 61812-1 |
| Temperature Drift | +/- 0.05 %/°C |
| Voltage Drift | +/- 0.2 %/V |
| Protection Type | Reverse polarity protection Overvoltage protection |
| Output Type | Open collector PNP |
| Temporary Permissible Current | 10 A 0.01 s |
| Minimum Switching Current | 10 mA |
| Voltage Drop In Closed State | 3 V |
| Network Type | DC |
| Residual Current In Open State | 0.1 mA |
| Power Consumption In W | 1 W |
| Reset Time | 5 ms after time delay on de-energisation 7 ms during time delay on de-energisation |
| Local Signalling | LED green, flashing timing in progress LED, steady no timing in progress and output relay energised |
| [Us] Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 16.8…31.2 V DC |
| Output Short-Circuit Protct | With |
| Connections - Terminals | Screw terminals 1 x 4 mm² EN/IEC 60947-1 Screw terminals 1 x 2.5 mm² EN/IEC 60947-1 |
| IP Degree Of Protection | Front IP65 IEC 60529 Back IP20 IEC 60529 |
| Ambient Air Temp For Op | -4…140 °F (-20…60 °C) |
| Ambient Air Temp For Storage | -4…176 °F (-20…80 °C) |
| Tightening Torque | 4.43 lbf.in (0.5 N.m) |
| Dielectric Strength | 1500 V EN/IEC 61812-1 |
| Ui Rated Insulation Voltage | 50 V EN 60947-1 50 V IEC 60664-1 |
| Uimp Rated Imp Wstd Voltage | 4 kV EN 60947-1 4 kV IEC 60664-1 |
| Surge Withstand | 1 kV, level 2 IEC 61000-4-5 |
| Overvoltage Category | Class 3 IEC 60536 Class 3 IEC 60664-1 |
| Pollution Degree | 3 |
| Vibration Resistance | 0.15 mm 10…60 Hz)IEC 60068-2-6 2 gn 60…150 Hz)IEC 60068-2-6 |
| Shock Resistance | +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Electromagnetic Compatibility | Electrostatic discharge 6 kV level 3 IEC 61000-4-2 Electromagnetic emission class B IEC 55011 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) 80 MHz...1 GHz level 3 IEC 61000-4-3 2.74 V/m (3 V/m) 1.4...2 GHz level 3 IEC 61000-4-3 0.91 V/m (1 V/m) 2...2.7 GHz level 3 IEC 61000-4-3 |
| Imm To Radioelectric Fields | 10 V level 3 EN/IEC 61000-4-6 |
| Disturbance Radiated/Conducted | Class B EN 50022 |
| Standards | UL 508 EN/IEC 61812-1 |
| Product Certifications | CE UL Listed |
| Height | 2.44 in (62 mm) |
| Diameter | 1.14 in (29 mm) |
| Product Weight | 0.06 lb(US) (0.027 kg) |
