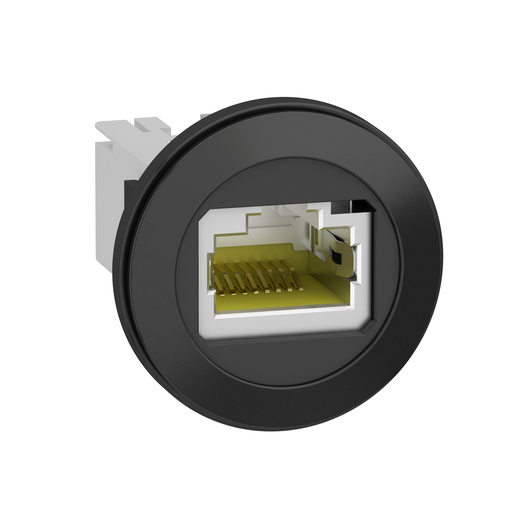

XB5PRJ45
Panel mounted RJ45 port, plastic, Ø22, for ethernet interface, RJ45 jack
This Harmony XB5, panel mounted RJ45 port enables connection to your machine of various devices. This panel mounted RJ45 communication port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet door. It is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet.
Add to Quote CatalogueSpecifications
| Part Number | XB5PRJ45 |
|---|---|
| Country of Origin | DE |
| UPC | 785901715801 |
| UPC11 | 78590171580 |
| EAN | 3606481194213 |
| Availability | N |
| Lead Time | 17 |
| HTs Code | 8536698000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Depth | 1.42 inch |
| Height | 1.10 inch |
| Width | 1.10 inch |
| Weight | 0.06 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Panel mounted RJ45 port |
| Device Short Name | XB5P |
| Sale Per Indivisible Qty | 1 |
| Mounting Diameter | 0.87 in (22 mm) |
| Thickness | 0.24 in (6 mm) without protection cover 0.06…0.20 in (1.5…5 mm) with protection cover plastic 0.06…0.20 in (1.5…5 mm) with protection cover rigid plastic 0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
| Bezel Material | Plastic |
| Fixing Collar Material | Plastic |
| Integrated Connection Type | RJ45 Ethernet 10 Gbit/s |
| Number Of Matings | 750 cycles |
| IP Degree Of Protection | Front IP20 IEC 60529 Back IP20 IEC 60529 |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Tightening Torque | 13.28 lbf.in (1.5 N.m) |
| Vibration Resistance | 5 gn 10…500 Hz) IEC 60068-2-6 |
| Standards | IEC 60603-7 |
| Product Certifications | UL Listed CSA |
| Height | 1.10 in (28 mm) |
| Width | 1.10 in (28 mm) |
| Depth | 1.42 in (36 mm) |
| Product Weight | 0.06 lb(US) (0.0266 kg) |
| Category | 00028 - DATA PORTS |
| Discount Schedule | CS2 |
| GTIN | 00785901715801 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
