XB5RMB03

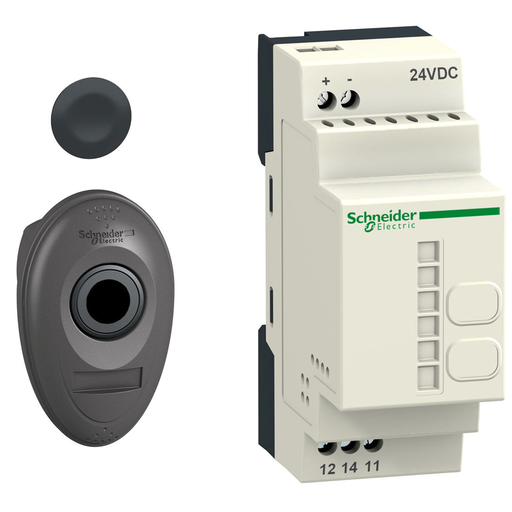

Pack with 1 wireless and batteryless plastic push button Ø22 + 1 non-configurable receiver + 1 set of caps, 24 V DC
This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.
Add to Quote CatalogueSpecifications
| Part Number | XB5RMB03 |
|---|---|
| Country of Origin | FR |
| UPC | 785901919254 |
| UPC11 | 78590191925 |
| EAN | 3606480334467 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8526925000 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony XB5R |
|---|---|
| Product Or Component Type | Wireless and batteryless package |
| Device Short Name | XB5R |
| Head Material | Plastic |
| Frequency | 2405 MHz transmitter 2405 MHz receiver |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Control Type | Wireless and batteryless push-button handy box assembled on fixing collar |
| Type Of Receiver | Non-programmable receiver 1 relay) |
| [Us] Rated Supply Voltage | 24 V DC |
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Customizable | No |
| Compatibility Code | XB5R |
| Us Rated Supply Voltage | 24 V |
| Product Certifications | UL GOST CCC C-tick CSA |
| Marking | CE |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 |
| Radio Agreement | RSS SRRC ICASA FCC ANATEL ARIB T66 |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901919254 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
