| Range Of Product |
Harmony XB5R |
| Product Or Component Type |
Wireless and batteryless package |
| Device Short Name |
XB5R |
| Head Material |
Plastic |
| Frequency |
2405 MHz transmitter
2405 MHz receiver |
| Emission Class |
5M00G7W |
| Antenna Type |
Omnidirectional |
| Control Type |

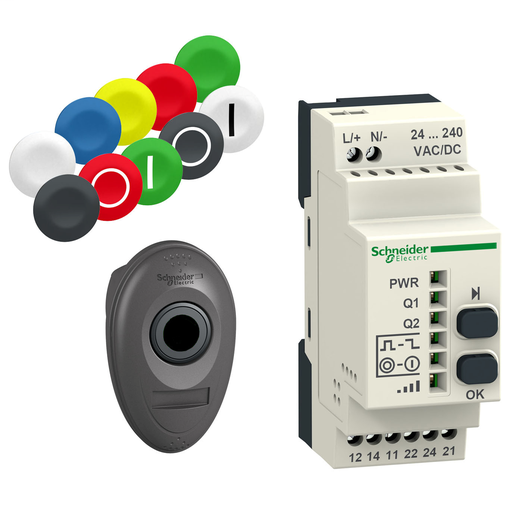

Wireless and batteryless push-button handy box assembled on fixing collar |
| Type Of Receiver |
Programmable receiver 2 relays) |
| [Us] Rated Supply Voltage |
24...240 V AC/DC 50/60 Hz |
| Status Led |
1 LED Green power ON
2 LEDs Green relay ON
2 LEDs Green function mode
1 LED green and yellow reception signal |
| Communication Port Protocol |
Zigbee IEEE 802.15.4 |
| Max Power Consumption In W |
1 mW |
| Number Of Channels |
1 |
| Modulation Technique |
O-QPSK |
| Bandwidth |
5 MHz |
| Antenna Gain |
0 dBi |
| Customizable |
No |
| Compatibility Code |
XB5R |
| Us Rated Supply Voltage |
24...240 V |
| Product Certifications |
CCC
CSA
C-tick
GOST
UL |
| Marking |
CE |
| Standards |
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-1
UL 508 |
| Radio Agreement |
ANATEL
SRRC
ICASA
FCC
ARIB T66
RSS |
| Category |
22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule |
I |
| GTIN |
00785901919452 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
