XB5RFA02
Pack 22mm XB5R programble receiver AC/DC

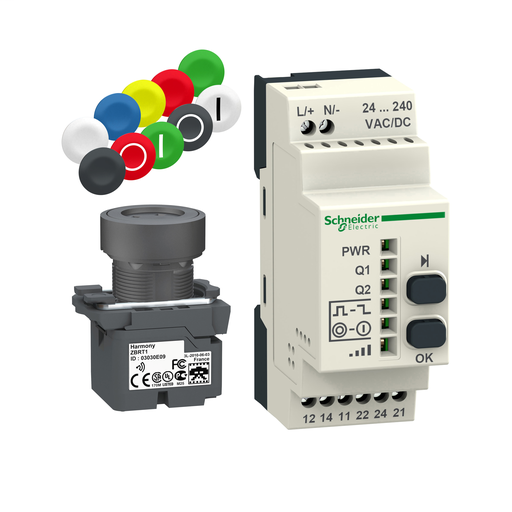

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.
Add to Quote CatalogueSpecifications
| Part Number | XB5RFA02 |
|---|---|
| Country of Origin | FR |
| UPC | 785901939597 |
| UPC11 | 78590193959 |
| EAN | 3606480334450 |
| Availability | N |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8526925000 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony XB5R |
|---|---|
| Product Or Component Type | Wireless and batteryless package |
| Device Short Name | XB5R |
| Head Material | Plastic |
| Kit Composition | 1 plastic push-button, 1 receiver and 1 set of caps |
| Frequency | 2405 MHz transmitter 2405 MHz receiver |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
| Device Composition | ZBRT1 ZBA79 ZBRRA ZB5AZ009 ZB5RZA0 |
| Control Type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Type Of Receiver | Programmable receiver 2 relays) |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Status Led | 1 LED Green power ON 2 LEDs Green relay ON 2 LEDs Green function mode 1 LED green and yellow reception signal |
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Product Certifications | UL CCC GOST CSA C-tick |
| Marking | CE |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-1 |
| Radio Agreement | SRRC RSS ARIB T66 FCC ICASA ANATEL |
| Category | 22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule | I |
| GTIN | 00785901939597 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
Documents
- Certificate (SIRIM-E011926)
- Certificate (UL-20140117-E164353)
- Certificate (CSA-2420797)
- Certificate (Russia-77-14-0522-3252)
- Declaration Of Conformity (RCM-XB5R-XB4R-ZBR)
- Declaration Of Conformity (UE-XB4R-XB5R)
- Application Solutions (EIO0000002273)
- User Guide (EIO0000000812)
- User Guide (9001HO1101)
