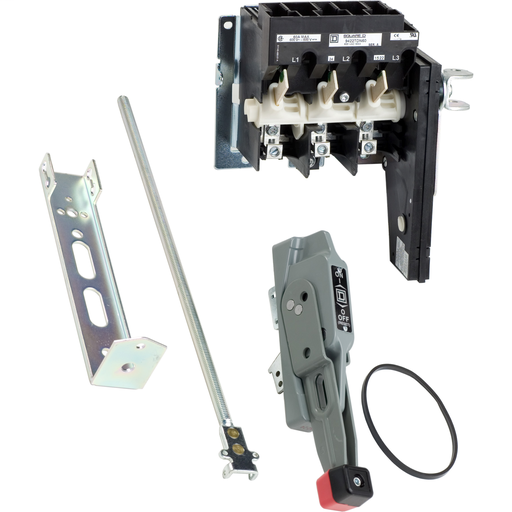

Operating mechanism, flange mounted, variable depth, 60A, 600 V, no fuse, switch mechanism, 6 inch handle, NEMA 4
The 9422T disconnect switches were designed for control panel installations. These switches include common switch profile 30A to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. They are compatible with 9422A handle operators and 9423 door mechanisms. This switch and operating mechanism comes with a 9422A1 handle mechanism overpacked. This disconnect switch has a 60A rating. This disconnect switch has a rating of 15 HP at 208 and 240 VAC, 30 HP at 480 VAC, 50 HP at 600 VAC poly phase and 10 HP at 250 VDC with two poles. This disconnect has no fuses. This mechanism has a variable depth of 6.63 inches to 18 inches. Switch and operating mechanism is UL Component Recognized and CSA certified
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422ATDN601 |
|---|---|
| Country of Origin | MX |
| UPC | 785901872177 |
| UPC11 | 78590187217 |
| EAN | 0785901872177 |
| Availability | S |
| Lead Time | 5 |
| Retail Flag | true |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Non-fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 60 A |
| Horsepower Rating | 15 hp 200 V AC 15 hp 230 V AC 30 hp 460 V AC 50 hp 575 V AC 10 hp 250 V DC |
| Handle Type | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Certifications | CSA UL Recognized |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901872177 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
