Operating mechanism, flange mounted, variable depth, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

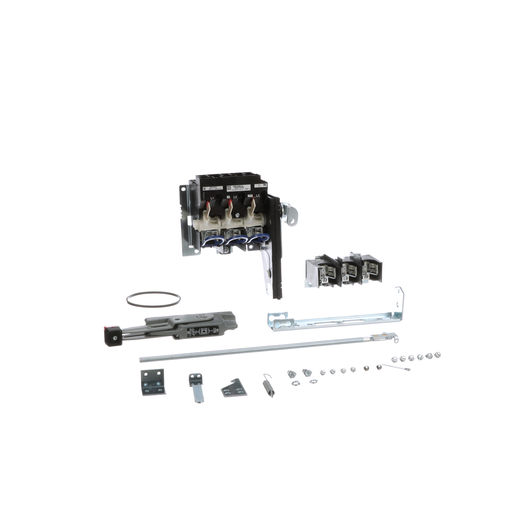

9422ATDF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 600 V. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC max when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Switch is UL component recognized and CSA certified.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422ATDF631 |
|---|---|
| Country of Origin | MX |
| UPC | 785901872191 |
| UPC11 | 78590187219 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 60 A |
| Horsepower Rating | 15 hp 200 V AC 15 hp 230 V AC 30 hp 460 V AC 50 hp 575 V AC 10 hp 250 V DC |
| Fuse Rating | 60 A 600 V |
| Handle Type | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Fuse Type | J R H K |
| Certifications | UL Recognized CSA |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901872191 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
