9422ATCN301

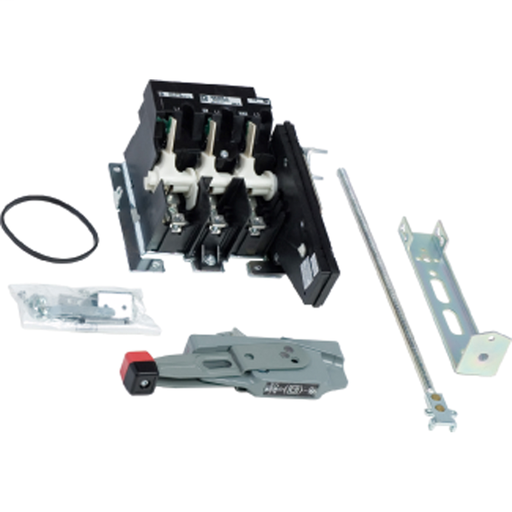

Operating mechanism, flange mounted, variable depth, 30A, 600 V, no fuse, switch mechanism, 6 inch handle, NEMA 4
Specifications
| Part Number | 9422ATCN301 |
|---|---|
| Country of Origin | MX |
| UPC | 785901872146 |
| UPC11 | 78590187214 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Non-fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 30 A |
| Horsepower Rating | 7.5 hp 200 V AC 7.5 hp 230 V AC 15 hp 460 V AC 20 hp 575 V AC 5 hp 250 V DC |
| Handle Type | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Certifications | UL Recognized CSA |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901872146 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
