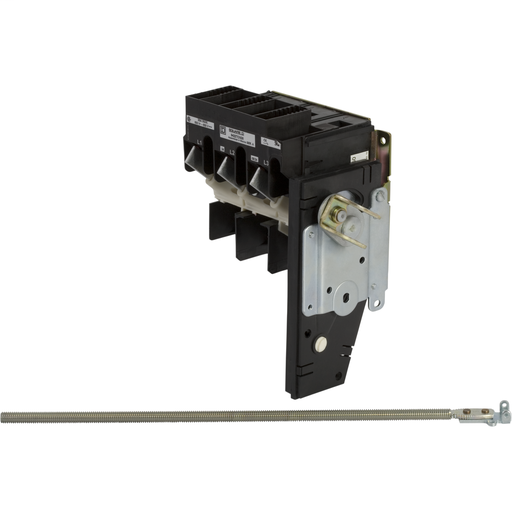

Operating mechanism, flange mounted, variable depth, 30A, 600 V, no fuse, switch mechanism
9422TCN disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This 30 A disconnect switch is without fuse clips. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC max when using two poles. 9422A operating handles must be purchased separately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Switch is UL component recognized and CSA certified.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422TCN30 |
|---|---|
| Country of Origin | MX |
| UPC | 785901879749 |
| UPC11 | 78590187974 |
| EAN | 0785901879749 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Non-fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 30 A |
| Horsepower Rating | 7.5 hp 200 V AC 7.5 hp 230 V AC 15 hp 460 V AC 20 hp 575 V AC 5 hp 250 V DC |
| Handle Type | Ordered separately |
| Certifications | CSA UL Recognized |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901879749 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
Documents
- Instruction Sheet (50006-413-08)
- CAD (9422_TC-TD-TE_OUTLINE_000)
- CAD dwg (9422_TC-TD-TE_OUTLINE_000)
- CAD pdf (9422_TC-TD-TE_OUTLINE_000)
- CAD dxf (9422_TC-TD-TE_OUTLINE_000)
- Product Datasheet (pdf)
- Certificate (CSA_Certificate_025490_4652_04)
- Certificate (UL_Certificate_E52369_WHTY2)
- Certificate (CSA_Certificate_025490_3211_07)
