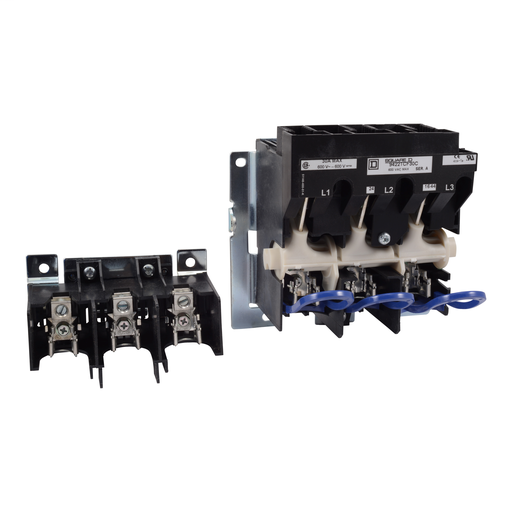

9422TDF60
Operating mechanism, flange mounted, variable depth, 30A, 600 V, H, K, J, R fuseholder, switch mechanism
Specifications
| Part Number | 9422TDF60 |
|---|---|
| Country of Origin | MX |
| UPC | 785901879794 |
| UPC11 | 78590187979 |
| Availability | S |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 60 A |
| Horsepower Rating | 15 hp 200 V AC 15 hp 230 V AC 30 hp 460 V AC 50 hp 575 V AC 10 hp 250 V DC |
| Fuse Rating | 60 A 250 V 30 A 600 V |
| Handle Type | Ordered separately |
| Fuse Type | R K H J |
| Certifications | CSA UL Recognized |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901879794 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
Documents
- Product Datasheet (pdf)
- CAD dwg (9422_TC-TD-TE_OUTLINE_000)
- CAD (9422_TC-TD-TE_OUTLINE_000)
- CAD pdf (9422_TC-TD-TE_OUTLINE_000)
- CAD dxf (9422_TC-TD-TE_OUTLINE_000)
- Instruction Sheet (50006-413-08)
- Certificate (UL_Certificate_E52369_WHTY2)
- Certificate (CSA_Certificate_025490_4652_04)
- Certificate (CSA_Certificate_025490_3211_07)
