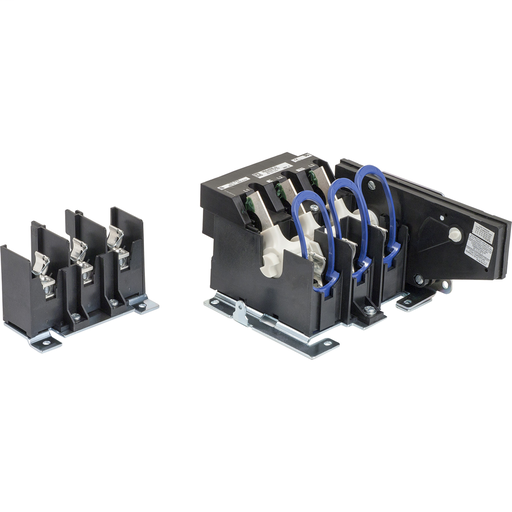

Operating mechanism, flange mounted, variable depth, 30A, 600 V, fuseholder, switch mechanism, 6 inch handle, NEMA 4X
The 9422T disconnect switches were designed for control panel installations. These switches include common switch profile 30A to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. They are compatible with 9422A handle operators and 9423 door mechanisms. This switch and operating mechanism comes with a 9422A2 handle mechanism overpacked. This disconnect switch has a 30A rating. This disconnect switch has a rating of 7.5 HP at 208 and 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC poly phase and 5 HP at 250 VDC with two poles. This disconnect will accept Type H, K, J, or R fuses. The noninterchangeable fuse clips are rated at 60A at 250 V and 30A at 600V. This mechanism has a variable depth of 6.63 inches to 18 inches. Switch and operating mechanism is UL Component Recognized and CSA certified
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422ATCF332 |
|---|---|
| Country of Origin | MX |
| UPC | 785901316428 |
| UPC11 | 78590131642 |
| EAN | 0785901316428 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8536509045 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
Characteristics
| Range | 9422T |
|---|---|
| Product | Disconnect Switch |
| Disconnect Type | Fusible disconnect switch |
| Mounting Type | Flange rod variable depth |
| Current Rating | 30 A |
| Horsepower Rating | 7.5 hp 200 V AC 7.5 hp 230 V AC 15 hp 460 V AC 20 hp 575 V AC 5 hp 250 V DC |
| Fuse Rating | 60 A 250 V 30 A 600 V |
| Handle Type | 6 in handle included NEMA 4/4X enclosures stainless steel |
| Fuse Type | H J K R |
| Certifications | CSA UL Recognized |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901316428 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
