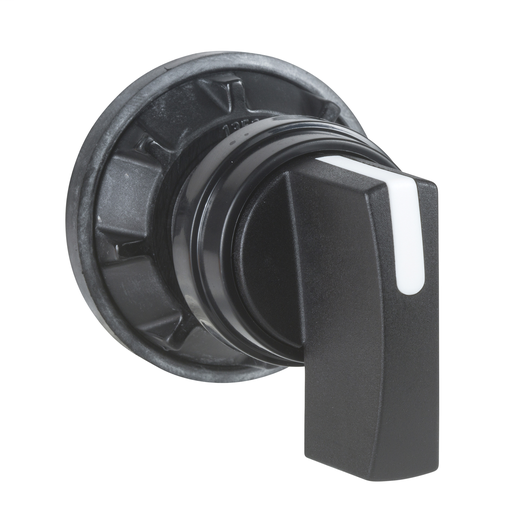

KAA1H - Operating head for cam switch – Ø 29 mm – black handle

KAA1H

Add to Quote Catalogue

Part Number	KAA1H
Country of Origin	CZ
UPC	785901899082
UPC11	78590189908
EAN	3389110980721
Availability	N
Lead Time	27
UNSPSC	39122217
ECCN	EAR99
HTs Code	8538908180
Prop 65	This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant	Yes
Discount Schedule	CS1
Return Indicator	No
Weight	0.09 pound

Range Of Product	Harmony Series K
Product Or Component Type	Cam switch operating head
Component Name	KAA
Product Compatibility	Front mounting bodies 12 and 20 A Ø 22 mm hole
Cam Switch Head Type	With bezel Ø 29 mm, plastic with metallic finish
Type Of Operator	Black handle 1.38 in (35 mm)
Rotary Handle Padlocking	Without
Presentation Of Legend	With mat black
Mechanical Durability	1000000 cycles
Cad Overall Width	1.14 in (29 mm)
Cad Overall Height	1.50 in (38 mm)
Cad Overall Depth	3.03 in (77 mm)
Length	1.38 in (35 mm)
Product Weight	0.09 lb(US) (0.042 kg)
Compatibility Code	KAA
Protective Treatment	TC
Ambient Air Temp For Op	-13…131 °F (-25…55 °C)
Ambient Air Temp For Storage	-40…158 °F (-40…70 °C)
Shock Resistance	30 gn IEC 68-2-27
Vibration Resistance	5 gn 10…150 Hz)IEC 68-2-6
IP Degree Of Protection	IP65 IEC 529 IP65 NF C 20-010
Category	21446 - 9003 K CAM SWITCHES
Discount Schedule	CS1
GTIN	00785901899082
Nbr. Of Units In Pkg.	1
Country Of Origin	CZ
REACh Free Of SVHC	Yes
EU RoHs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free	Yes
Mercury Free	Yes
Warranty	18 months
