KAG3H
Operating head 45 x 45 mm – black color – black handle – blank for engraving

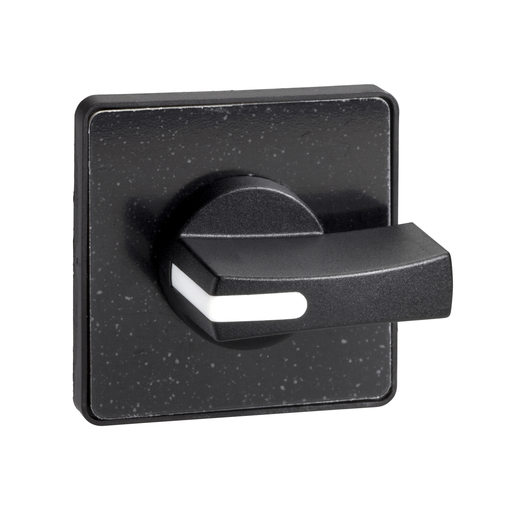

This Harmony KAG3H is a black operating head 45 x 45mm with black handle, blank for engraving. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
Add to Quote CatalogueSpecifications
| Part Number | KAG3H |
|---|---|
| Country of Origin | CZ |
| UPC | 389110980448 |
| UPC11 | 38911098044 |
| EAN | 3389110980448 |
| Availability | N |
| Lead Time | 43 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP10 |
| Return Indicator | No |
| Weight | 0.03 pound |
Characteristics
| Range Of Product | Harmony Series K |
|---|---|
| Product Or Component Type | Cam switch operating head |
| Component Name | KAG |
| Product Compatibility | Front mounting bodies 12 and 20 A multifixing |
| Cam Switch Head Type | With front plate 45 x 45 mm |
| Type Of Operator | Black handle 1.38 in (35 mm) |
| Rotary Handle Padlocking | Without |
| Presentation Of Legend | With mat black |
| Mechanical Durability | 1000000 cycles |
| Cad Overall Width | 1.77 in (45 mm) |
| Cad Overall Height | 1.77 in (45 mm) |
| Cad Overall Depth | 1.34 in (34 mm) |
| Length | 1.38 in (35 mm) |
| Product Weight | 0.03 lb(US) (0.012 kg) |
| Compatibility Code | KAG |
| Protective Treatment | TC |
| Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Shock Resistance | 30 gn IEC 68-2-27 |
| Vibration Resistance | 5 gn 10…150 Hz)IEC 68-2-6 |
| IP Degree Of Protection | IP40 IEC 529 IP40 NF C 20-010 |
| Category | 18402 - WORLD SERVICE PARTS(CONTROL ACCESS) |
| Discount Schedule | CP10 |
| GTIN | 03389110980448 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
