KAC1H

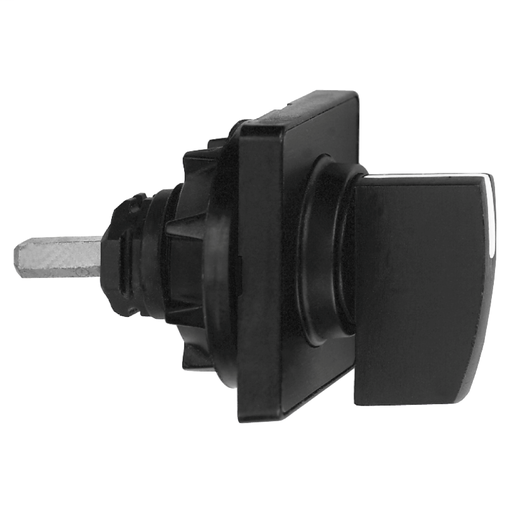

Operating head 45 x 45 mm – black color – black handle – blank for engraving
This Schneider Electric Harmony K operating head has a 45 x 45 mm size. It has black color with black handle. This black operating head for 22mm diameter is designed to meet most industrial and process control application thanks to a compact size. It is designe to have an easy integration with 16 millimeter and 22 millimeter diameter units and has several selection functions. Simple and modular design to allow for easy installation. Designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery. Sturdy plastic body resistant (strength) to shocks and corrosion. IP65 on its front part allow for installation in harsh (heavy) environment or outdoor.
Add to Quote CatalogueSpecifications
| Part Number | KAC1H |
|---|---|
| Country of Origin | CZ |
| UPC | 785901449133 |
| UPC11 | 78590144913 |
| EAN | 3389110980486 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.11 pound |
Characteristics
| Range Of Product | Harmony Series K |
|---|---|
| Product Or Component Type | Cam switch operating head |
| Component Name | KAC |
| Product Compatibility | Front mounting bodies 12 and 20 A Ø 22 mm hole |
| Cam Switch Head Type | With front plate 45 x 45 mm |
| Type Of Operator | Black handle 1.38 in (35 mm) |
| Rotary Handle Padlocking | Without |
| Presentation Of Legend | With mat black |
| Mechanical Durability | 1000000 cycles |
| Cad Overall Width | 1.77 in (45 mm) |
| Cad Overall Height | 1.77 in (45 mm) |
| Cad Overall Depth | 3.03 in (77 mm) |
| Length | 1.38 in (35 mm) |
| Product Weight | 0.11 lb(US) (0.048 kg) |
| Compatibility Code | KAC |
| Protective Treatment | TC |
| Ambient Air Temp For Op | -13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Shock Resistance | 30 gn IEC 68-2-27 |
| Vibration Resistance | 5 gn 10…150 Hz)IEC 68-2-6 |
| IP Degree Of Protection | IP65 IEC 529 IP65 NF C 20-010 |
| Category | 21446 - 9003 K CAM SWITCHES |
| Discount Schedule | CS1 |
| GTIN | 00785901449133 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
