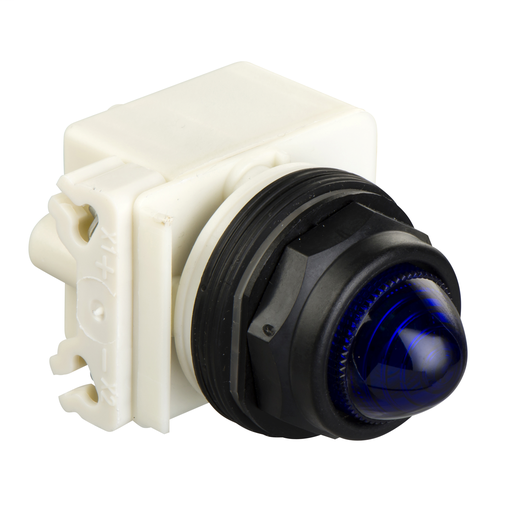

Octagonal pilot light Ø 30 – blue – incandescent BA 9s – 48 V AC/DC – IP66
This Harmony 9001SK, blue pilot light with plastic dome is supplied with 48V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001SKP36L9 |
|---|---|
| Country of Origin | MX |
| UPC | 389118037441 |
| UPC11 | 38911803744 |
| EAN | 3389118037441 |
| Availability | N |
| Lead Time | 4 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.18 pound |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | 9001SK |
| Lens Type | Domed plastic |
| Light Block Supply | Direct 48 V AC/DC |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Shape Of Signaling Unit Head | Round |
| Cap/Operator Or Lens Colour | Blue |
| Light Source | incandescent |
| Bulb Base | BA 9s |
| [Us] Rated Supply Voltage | 48 V AC/DC |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1 |
| Shape Of Screw Head | Cross slotted |
| Connections - Terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 2.5 kV EN/IEC 60947-1 |
| Operating Position | Any position |
| Cad Overall Width | 2.13 in (54 mm) |
| Cad Overall Height | 2.76 in (70 mm) |
| Cad Overall Depth | 1.65 in (42 mm) |
| Product Weight | 0.18 lb(US) (0.082 kg) |
| Device Presentation | Complete product |
| Electrical Shock Protect Class | Class II IEC 61140 |
| Protective Treatment | TC |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X |
| Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Standards | JIS C 852 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | NEMA UL 508 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 03389118037441 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Warranty | 18 months |
