| Range Of Product |
Harmony XB5R |
| Product Or Component Type |
Wireless and batteryless transmitter |
| Device Short Name |
XB5R |
| Bezel Material |
Dark grey plastic |
| Mounting Diameter |
1.57 in (40 mm) |
| Sale Per Indivisible Qty |
1 |
| Shape Of Signaling Unit Head |
Round |
| Type Of Operator |
spring return |
| Operator Profile |

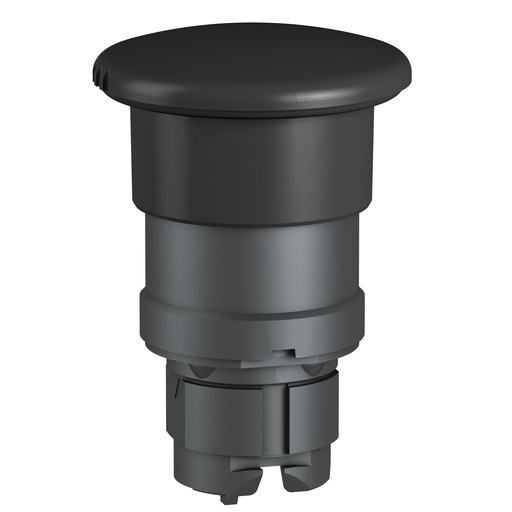

Black mushroom Ø 40 mm, unmarked |
| Cad Overall Width |
2.20 in (56 mm) |
| Cad Overall Height |
2.07 in (52.59 mm) |
| Cad Overall Depth |
5.91 in (150.2 mm) |
| Mechanical Durability |
1000000 cycles |
| Product Compatibility |
ZBZ28 |
| Mechanical Robustness |
Free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| IP Degree Of Protection |
IP65 IEC 60529 front face)
IP30 IEC 60529 back face)
IP65 UL Type 12 front face) |
| Nema Degree Of Protection |
NEMA 12 |
| IK Degree Of Protection |
IK03 IEC 50102 |
| Standards |
EN/IEC 60947-5-4
EN/IEC 60947-1
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
JIS C8201-5-1
JIS C8201-1 |
| Product Certifications |
DNV
RINA
CSA
GL
LROS (Lloyds register of shipping)
UL Listed
BV |
| Vibration Resistance |
+/- 10 mm 2…11 Hz)IEC 60068-2-6 |
| Category |
22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule |
I |
| GTIN |
00785901235187 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
