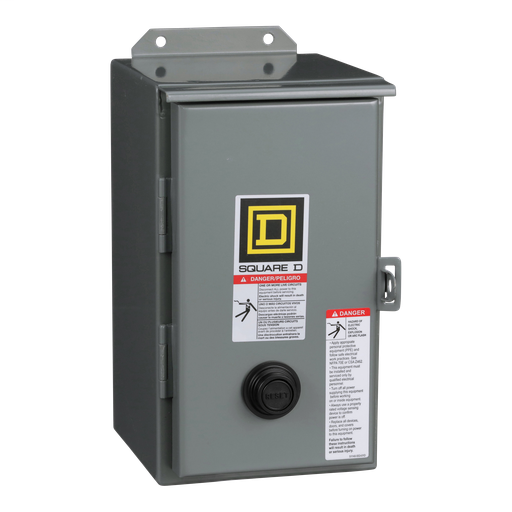

Nonreversing magnetic starter, Size 1, 27 A, 3P, 110/120 VAC 50/60 Hz coil, melting alloy overload, NEMA 12/3R
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 12/3R dust tight and drip tight enclosure is used to protect this starter. Enclosure is 12.75 inches tall, 6.38 inches wide and 8.53 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 8536SCA3V02S |
|---|---|
| Country of Origin | MX |
| UPC | 785901877424 |
| UPC11 | 78590187742 |
| EAN | 0785901877424 |
| Availability | S |
| Lead Time | 7 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 8.54 inch |
| Height | 12.76 inch |
| Width | 6.38 inch |
Characteristics
| Product Or Component Type | Starter |
|---|---|
| Type | S |
| Control Circuit Type | Separate control circuit |
| Control Circuit Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
| Motor Starter Type | Non reversing |
| Current Rating | 27 A |
| Number Of Poles | 3P |
| Number Of Phases | 3 phase |
| Horsepower Rating | 7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC |
| Maximum Voltage Rating | 600 V AC |
| Control Units | No control units |
| Thermal Overload Type | Melting alloy 3 |
| Electrical Connection | Screw clamp terminals |
| Nema Size | 1 |
| Height | 12.76 in (324 mm) |
| Depth | 8.54 in (217 mm) |
| Width | 6.38 in (162 mm) |
| Enclosure Type | NEMA 12 painted sheet steel |
| Product Certifications | CSA NEMA UL Listed |
| Category | 21192 - 8502,36 SC,SD(NOT S*R,T,W) |
| Discount Schedule | CP1 |
| GTIN | 00785901877424 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Not compliant |
| Pvc Free | Yes |
| Warranty | 18 months |
