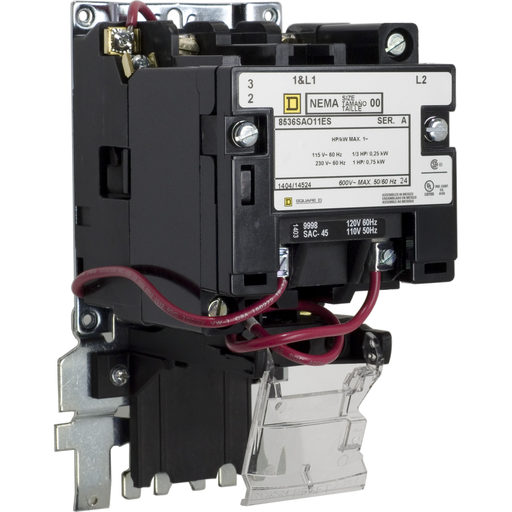

8536SAO11V02ES
Non-Reversing Starter Size 00, 2-Pole, Bi-Metallic Overload, Open +Options
Specifications
| Part Number | 8536SAO11V02ES |
|---|---|
| UPC | 785901145240 |
| UPC11 | 78590114524 |
| EAN | 0785901145240 |
| UNSPSC | 39121521 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Return Indicator | Yes |
| Depth | 4.21 inch |
| Height | 6.77 inch |
| Width | 3.50 inch |
Characteristics
| Product Or Component Type | Starter |
|---|---|
| Type | S |
| Control Circuit Type | Separate control circuit |
| Control Circuit Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
| Motor Starter Type | Non reversing |
| Current Rating | 9 A |
| Number Of Poles | 2P |
| Number Of Phases | 1 phase |
| Horsepower Rating | 0.33 HP 115 V AC 1 HP 230 V AC |
| Maximum Voltage Rating | 600 V AC |
| Control Units | No control units |
| Thermal Overload Type | IEC adapted Bi-metal 1 |
| Electrical Connection | Screw clamp terminals |
| Nema Size | 00 |
| Height | 6.77 in (172 mm) |
| Depth | 4.21 in (107 mm) |
| Width | 3.50 in (89 mm) |
| Enclosure Type | Not rated (open device) |
| Product Certifications | UL Listed CSA NEMA |
| Category | 21191 - 8502,36 SA,SB(NOT S*R,T,W) |
| Discount Schedule | CP1 |
| GTIN | 00785901145240 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Not compliant |
