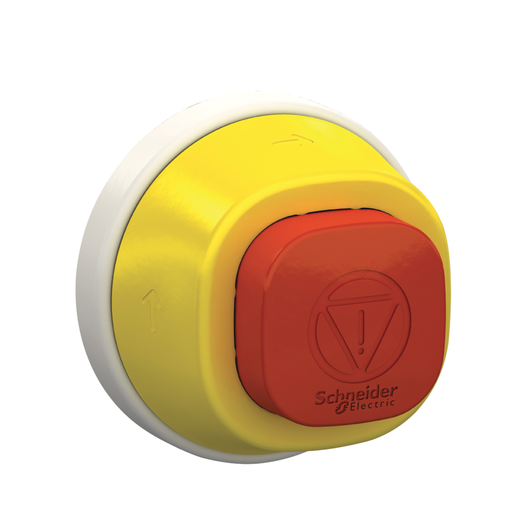

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Add to Quote Catalogue| Part Number | ZB5AS84W00 |
|---|---|
| EAN | 3606489744939 |
| Availability | N |
| Lead Time | 21 |
| HTs Code | 8538906000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Weight | 0.14 pound |
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for emergency stop push-button |
| Product Destination | Emergency stop push-button |
| Device Short Name | ZB5 |
| Bezel Material | Plastic |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | trigger action and mechanical latching |
| Reset | Turn to release |
| Operator Profile | Red square 32 mm |
| Device Presentation | Basic element |
| Cad Overall Width | 2.36 in (60 mm) |
| Cad Overall Height | 2.36 in (60 mm) |
| Cad Overall Depth | 1.57 in (40 mm) |
| Product Weight | 0.14 lb(US) (0.063 kg) |
| Electrical Insulation Class | Class II IEC 61140 |
| Resist Electrostatic Dischrg | 4 kV on contact (on metal parts) IEC 61000-4-2 |
| Mechanical Durability | 300000 cycles |
| Station Name | XALKW01 |
| Electrical Composition Code | C7 4 single front mounting C8 4 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting C10 4 single and double front mounting |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50E Type 12 UL 50E Type 4 UL 50E Type 4X UL 50E |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 UL 60947-5-1 UL 60947-5-5 |
| Product Certifications | UL Listed CSA EAC CCC |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Nbr. Of Units In Pkg. | 1 |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
