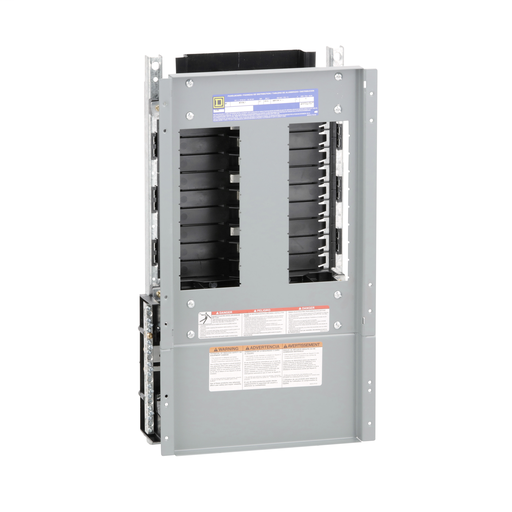

NF Panelboard, interior, main lug, 125 A, 3 PH, 4 wire, 18 CCT, Al
NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards provide 200% rated neutrals for non-linear loads. NF Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 480/277 VAC. This NF Panelboard interior has a main lug and is rated at 125 A three phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 18 circuits and has an aluminum bus bar. Interior is for EDB, EDG and EDJ branch circuit breakers. This interior provides protection for your commercial and industrial applications. NF Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Lug connections will accept 6 AWG to 2/0 AWG copper or aluminum wire. Interior is 21 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | NF418L1 |
|---|---|
| Country of Origin | MX |
| UPC | 785901871286 |
| UPC11 | 78590187128 |
| EAN | 0785901871286 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121112 |
| ECCN | EAR99 |
| HTs Code | 8537109150 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PE1A |
| Return Indicator | Yes |
| Height | 21 inch |
| Width | 10.44 inch |
Characteristics
| Panelboard Type | Main lugs |
|---|---|
| Branch Circuit Breaker Type | EDB/EDG/EDJ |
| Busbar Material | Aluminium |
| Number Of Spaces | 18 |
| Enclosure Nominal Height | 26 in (660.40 mm) 38 in (965.20 mm) |
| Enclosure Nominal Width | 20 in (508.00 mm) |
| Enclosure Nominal Width | 5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12 |
| In Rated Current | 125 A |
| Iu Rated Interrupted Current | 65 kA |
| Wiring Configuration | 4-wire |
| Number Of Phases | 3 phase |
| Voltage Rating | 480Y/277 V AC |
| Connections - Terminals | Lug line AWG 6...AWG 2/0 aluminium/copper Lug neutral AWG 6...AWG 2/0 aluminium |
| Tightening Torque | 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil) |
| Width | 10.44 in (265.18 mm) |
| Height | 21 in (533.40 mm) |
| Standards | CSA C22.2 UL 67 |
| Category | 08350 - NF MLO INTERIOR RTA |
| Discount Schedule | PE1A |
| GTIN | 00785901871286 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
