XVGU3SWV
Multi-color USB Programmable tower lights -60mm- steady/flashing LED-buzzer

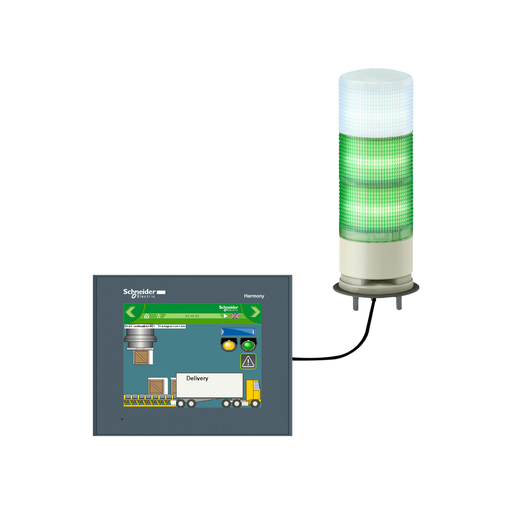

This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application. It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It offers configurable color combinations, flashing patterns and buzzer sounds. Included 82dB loud buzzer for alerting on critical machine statuses. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.
Add to Quote CatalogueSpecifications
| Part Number | XVGU3SWV |
|---|---|
| Country of Origin | ID |
| UPC | 785901774402 |
| UPC11 | 78590177440 |
| EAN | 3606480530944 |
| Availability | N |
| Lead Time | 55 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.66 pound |
Characteristics
| Range Of Product | Harmony XVGU |
|---|---|
| Product Or Component Type | USB configurable monolithic tower light |
| Beacon/Indicator Bk Unit Type | 3 illuminated units |
| Sound Signalling | Buzzer |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVGU |
| Light Source | LED steady or flashing multi-colour |
| Indicator Bank Base Type | Base with integrated buzzer |
| Noise Level | 82 dB 2 tone buzzer)1 m |
| Material | PC globe |
| Device Mounting | Direct mounting |
| Light Block Color | Clear/clear/clear |
| Us Rated Supply Voltage | 5 V DC |
| Connector Type | USB type A female |
| Current Consumption | 400 mA |
| Sound Frequency | 2700 Hz 3800 Hz |
| Power Consumption In W | 2 W |
| Flashing Frequency | 2 Hz flashing LED unit 1 Hz flashing LED unit |
| Product Compatibility | Vijeo Designer 4.6 indoor use only HMIGTO XBTGT.... XBTGK.... XBTGC1. XBTGC2. XBTGH |
| Product Weight | 0.66 lb(US) (0.3 kg) |
| Standards | EN 61000-6-2 EN 61000-6-4 |
| Product Certifications | GOST CUL CE RCM UL 508 |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 32…131 °F (0…55 °C) |
| Electrical Shock Protect Class | Class I |
| IP Degree Of Protection | IP54 |
| Category | 22618 - XVU TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901774402 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
