Part Number | XVC6B55SK |
---|---|
Country of Origin | ID |
UPC | 785901707448 |
UPC11 | 78590170744 |
EAN | 3606480032738 |
Availability | S |
Lead Time | 28 |
UNSPSC | 32151503 |
ECCN | EAR99 |
HTs Code | 8531809051 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | XV |
Return Indicator | No |
Height | 11.06 inch |
Weight | 0.88 pound |
Range Of Product | Harmony XVC6 |
---|---|

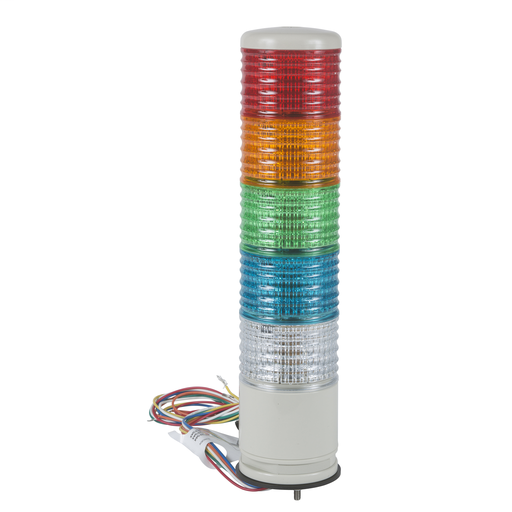

Product Or Component Type | Complete pre-wired monolithic tower light |
Beacon/Indicator Bk Unit Type | 5 illuminated units |
Sound Signalling | Buzzer |
Mounting Diameter | 2.36 in (60 mm) |
Component Name | XVC |
Light Source | LED steady or flashing red LED steady or flashing orange LED steady or flashing green LED steady or flashing blue LED steady or flashing clear |
[Us] Rated Supply Voltage | 24 V |
Supply Circuit Type | AC/DC |
Noise Level | 70…85 dB continuous or intermittent tone)1 m |
Material | Polycarbonate illuminated unit ABS (acrylonitrile butadiene-styrene) base unit PBT + ABS (UL94HB) top cover |
Product Mounting | On base |
Cable Cross Section | 0.00 in² (0.33 mm²) |
Awg Gauge | AWG 22 |
Cable Length | 33.46 in (850 mm) |
Marking | CE |
Uimp Rated Imp Wstd Voltage | 0.8 kV |
Current Consumption | 165 mA |
Fundamental Frequency | 2.23 kHz |
Flashing Frequency | 1 Hz |
Product Weight | 0.88 lb(US) (0.4 kg) |
Height | 11.06 in (280.8 mm) |
Standards | EN/IEC 61000-6-3 EN/IEC 61000-6-2 EN/IEC 61000-6-4 |
Product Certifications | UL |
Protective Treatment | TC |
Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
Electrical Shock Protect Class | Class II EN/IEC 61140 |
IP Degree Of Protection | IP54 flat surface installation EN/IEC 60529 |
Category | 22617 - XVC TOWER LIGHTS |
Discount Schedule | XV |
GTIN | 00785901707448 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | ID |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
Warranty | 18 months |
