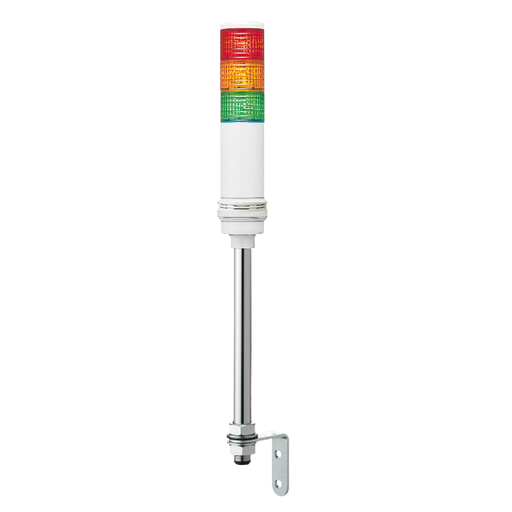

XVC6B35S
Monolithic tower light, red-orange-green, 60mm, tube mounting, steady or flashing, with buzzer 70…85 dB, IP23, 24 V AC DC
This Harmony XVC6B35S is a 60mm tower light. It has red, orange and green illuminated units flashing mode, with buzzer. It is part of the range Harmony XVC6 diameter 60mm pre-wired monolithic tower lights.
Add to Quote CatalogueSpecifications
| Part Number | XVC6B35S |
|---|---|
| Country of Origin | ID |
| UPC | 785901670841 |
| UPC11 | 78590167084 |
| EAN | 3606480032660 |
| Availability | S |
| Lead Time | 65 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809051 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Height | 22.17 inch |
| Weight | 2.16 pound |
Characteristics
| Range Of Product | Harmony XVC6 |
|---|---|
| Product Or Component Type | Complete pre-wired monolithic tower light |
| Beacon/Indicator Bk Unit Type | 3 illuminated units |
| Sound Signalling | Buzzer |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVC |
| Light Source | LED steady or flashing red LED steady or flashing orange LED steady or flashing green |
| [Us] Rated Supply Voltage | 24 V |
| Supply Circuit Type | AC/DC |
| Noise Level | 70…85 dB continuous or intermittent tone)1 m |
| Material | Polycarbonate illuminated unit ABS (acrylonitrile butadiene-styrene) base unit PBT + ABS (UL94HB) top cover STK (chromium-plated) support tube |
| Product Mounting | On support tube, 22 mm |
| Cable Cross Section | 0.00 in² (0.33 mm²) |
| Awg Gauge | AWG 22 |
| Cable Length | 21.65 in (550 mm) |
| Marking | CE |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 115 mA |
| Fundamental Frequency | 2.23 kHz |
| Flashing Frequency | 1 Hz |
| Product Weight | 2.16 lb(US) (0.98 kg) |
| Height | 22.17 in (563.1 mm) |
| Standards | EN/IEC 61000-6-3 EN/IEC 61000-6-2 EN/IEC 61000-6-4 |
| Product Certifications | UL |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class I EN/IEC 61140 |
| IP Degree Of Protection | IP23 vertical surface installation EN/IEC 60529 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901670841 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
