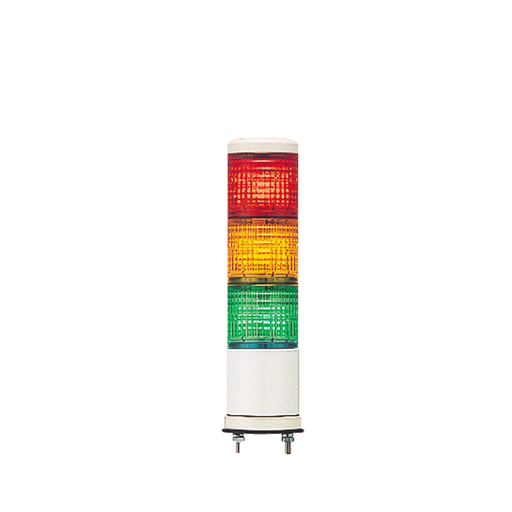

Monolithic tower light, red-orange-green, 60mm, base mounting, steady or flashing, with buzzer 70…85 dB, IP54, 24 V AC DC
This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.
Add to Quote CatalogueSpecifications
| Part Number | XVC6B35SK |
|---|---|
| Country of Origin | ID |
| UPC | 785901707424 |
| UPC11 | 78590170742 |
| EAN | 3606480032714 |
| Availability | S |
| Lead Time | 55 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809051 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Height | 7.91 inch |
| Weight | 0.66 pound |
Characteristics
| Range Of Product | Harmony XVC6 |
|---|---|
| Product Or Component Type | Complete pre-wired monolithic tower light |
| Beacon/Indicator Bk Unit Type | 3 illuminated units |
| Sound Signalling | Buzzer |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVC |
| Light Source | LED steady or flashing red LED steady or flashing orange LED steady or flashing green |
| [Us] Rated Supply Voltage | 24 V |
| Supply Circuit Type | AC/DC |
| Noise Level | 70…85 dB continuous or intermittent tone)1 m |
| Material | Polycarbonate illuminated unit ABS (acrylonitrile butadiene-styrene) base unit PBT + ABS (UL94HB) top cover |
| Product Mounting | On base |
| Cable Cross Section | 0.00 in² (0.33 mm²) |
| Awg Gauge | AWG 22 |
| Cable Length | 33.46 in (850 mm) |
| Marking | CE |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 115 mA |
| Fundamental Frequency | 2.23 kHz |
| Flashing Frequency | 1 Hz |
| Product Weight | 0.66 lb(US) (0.3 kg) |
| Height | 7.91 in (200.8 mm) |
| Standards | EN/IEC 61000-6-4 EN/IEC 61000-6-3 EN/IEC 61000-6-2 |
| Product Certifications | UL |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class II EN/IEC 61140 |
| IP Degree Of Protection | IP54 flat surface installation EN/IEC 60529 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901707424 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
