Part Number | XVC6B2 |
---|---|
Country of Origin | ID |
UPC | 785901670773 |
UPC11 | 78590167077 |
EAN | 3606480032554 |
Availability | S |
Lead Time | 28 |
UNSPSC | 32151503 |
ECCN | EAR99 |
HTs Code | 8531809051 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | XV |
Return Indicator | No |
Height | 18.44 inch |
Weight | 1.63 pound |
Range Of Product | Harmony XVC6 |
---|---|

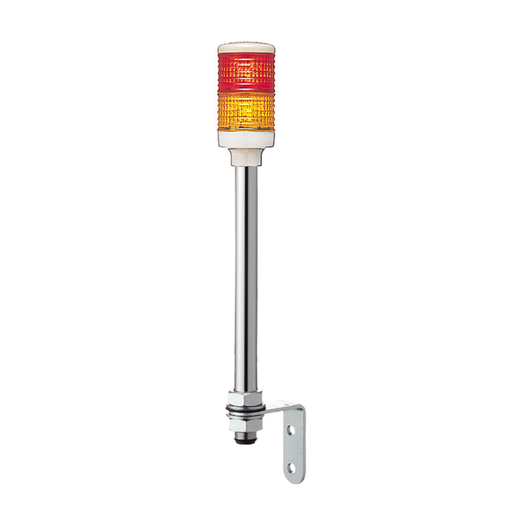

Product Or Component Type | Complete pre-wired monolithic tower light |
Beacon/Indicator Bk Unit Type | 2 illuminated units |
Sound Signalling | Without |
Mounting Diameter | 2.36 in (60 mm) |
Component Name | XVC |
Light Source | LED steady red LED steady orange |
[Us] Rated Supply Voltage | 24 V |
Supply Circuit Type | AC/DC |
Material | Polycarbonate illuminated unit ABS (acrylonitrile butadiene-styrene) base unit PBT + ABS (UL94HB) top cover STK (chromium-plated) support tube |
Product Mounting | On support tube, 22 mm |
Cable Cross Section | 0.00 in² (0.33 mm²) |
Awg Gauge | AWG 22 |
Cable Length | 23.62 in (600 mm) |
Marking | CE |
Uimp Rated Imp Wstd Voltage | 0.8 kV |
Current Consumption | 50 mA |
Flashing Frequency | 1 Hz |
Product Weight | 1.63 lb(US) (0.74 kg) |
Height | 18.44 in (468.3 mm) |
Standards | EN/IEC 61000-6-2 EN/IEC 61000-6-3 EN/IEC 61000-6-4 |
Product Certifications | UL |
Protective Treatment | TC |
Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
Electrical Shock Protect Class | Class I EN/IEC 61140 |
IP Degree Of Protection | IP23 vertical surface installation EN/IEC 60529 |
Category | 22617 - XVC TOWER LIGHTS |
Discount Schedule | XV |
GTIN | 00785901670773 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | ID |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
Warranty | 18 months |
