XVC6M1

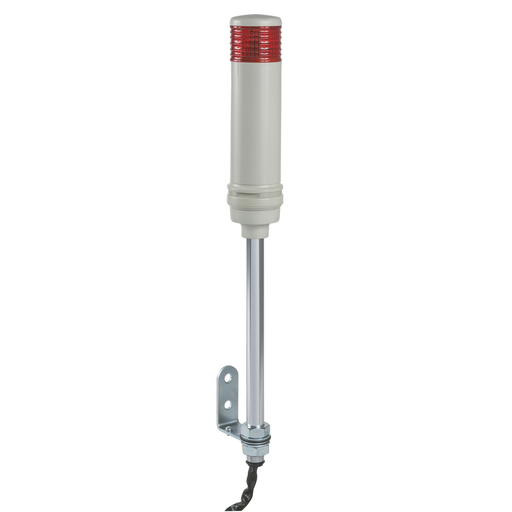

Monolithic tower light, red, 60mm, tube mounting, steady, without buzzer, IP23, 100…240 V AC
Specifications
| Part Number | XVC6M1 |
|---|---|
| Country of Origin | ID |
| UPC | 785901119920 |
| UPC11 | 78590111992 |
| EAN | 3606480072550 |
| Availability | N |
| Lead Time | 29 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531809051 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Height | 23.61 inch |
| Weight | 2.12 pound |
Characteristics
| Range Of Product | Harmony XVC6 |
|---|---|
| Product Or Component Type | Complete pre-wired monolithic tower light |
| Beacon/Indicator Bk Unit Type | 1 illuminated unit |
| Sound Signalling | Without |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVC |
| Light Source | LED steady red |
| [Us] Rated Supply Voltage | 100...240 V |
| Supply Circuit Type | AC |
| Material | Polycarbonate illuminated unit ABS (acrylonitrile butadiene-styrene) base unit PBT + ABS (UL94-V0) top cover |
| Product Mounting | On support tube, 22 mm |
| Cable Cross Section | 0.00 in² (0.33 mm²) 0.00 in² (0.83 mm²) |
| Awg Gauge | AWG 18 AWG 22 |
| Cable Length | 17.72 in (450 mm) 21.65 in (550 mm) |
| Marking | CE |
| Uimp Rated Imp Wstd Voltage | 4 kV |
| Current Consumption | 35 mA |
| Product Weight | 2.12 lb(US) (0.96 kg) |
| Height | 23.61 in (599.8 mm) |
| Standards | EN/IEC 60947-1 EN/IEC 60947-5-1 |
| Product Certifications | UL |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| Electrical Shock Protect Class | Class I EN/IEC 61140 |
| IP Degree Of Protection | IP23 vertical surface installation EN/IEC 60529 |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901119920 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
