XPSMP11123P

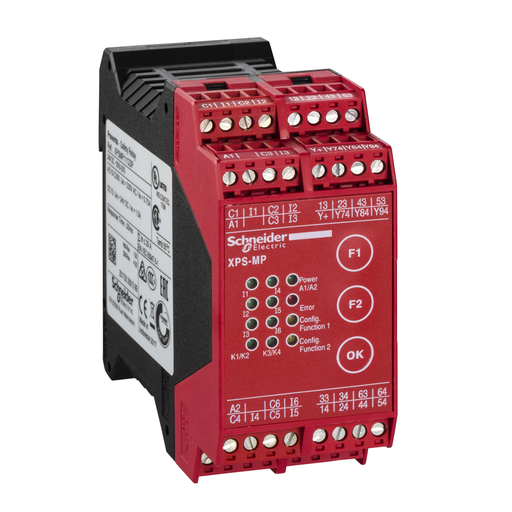

Module XPS-MP – 2 independent functions – 24 V DC
This XPSMP safety contoller can handle 2 independent safety functions. This safety controller with pre-defined functions meets the requirements of PL e/Category 4 conforming EN ISO 13849-1 and SILCL 3 conforming to EN/IEC 61508 and EN/IEC 62061. It enables two independent safety functions (selected from a choice of 15 pre-defined configurations) to be performed using the same product. It complies with the most stringent functional safety requirements thanks to multiple configurable safety functions. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
Brand: Telemecanique
Add to Quote CatalogueSpecifications
| Part Number | XPSMP11123P |
|---|---|
| Country of Origin | ID |
| UPC | 785901528005 |
| UPC11 | 78590152800 |
| EAN | 3389110861488 |
| Availability | S |
| Lead Time | 55 |
| UNSPSC | 32151802 |
| ECCN | EAR99 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | SAF2 |
| Return Indicator | Yes |
| Depth | 4.49 inch |
| Height | 3.90 inch |
| Width | 1.77 inch |
| Weight | 0.71 pound |
Characteristics
| Range Of Product | Preventa Safety automation |
|---|---|
| Product Or Component Type | Safety controller with pre-defined function |
| Safety Module Name | XPSMP |
| Safety Module Application | 2 independent functions |
| Safety Use Category | Category 4 maximum EN/IEC 60954-1 |
| Type Of Start | Automatic or unmonitored 1) Automatic or unmonitored 10) Automatic or unmonitored 11) Automatic or unmonitored 14) Automatic or unmonitored 3) Automatic or unmonitored 5) Automatic or unmonitored 7) Monitored 12) Monitored 13) Monitored 15) Monitored 2) Monitored 4) Monitored 6) Monitored 8) Monitored 9) |
| Checks | Configuration 10) Configuration 13) Configuration 3) Configuration 4) Configuration 5) Configuration 6) Configuration 9) |
| Standards | DIN V VDE 801 + A1 EN/IEC 60204-1 EN/IEC 60947-1 + A11 EN/IEC 60947-5-1 |
| Product Certifications | UL BIA CSA |
| Us Rated Supply Voltage | 24 V DC - 20...20 % |
| Connections - Terminals | Captive screw clamp terminals, removable terminal block solid 0.2...1 mm² without cable end, 2 wires Captive screw clamp terminals, removable terminal block flexible 0.2...1.5 mm² without cable end, 2 wires Captive screw clamp terminals, removable terminal block flexible 0.2...2.5 mm² without cable end, 1 wire Captive screw clamp terminals, removable terminal block solid 0.2...2.5 mm² without cable end, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.25...1 mm² with cable end, without bezel, 2 wires Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, with bezel, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, without bezel, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.5...1.5 mm² with cable end, with double bezel, 2 wires |
| Safety Level | Can reach PL e/category 4 EN/ISO 13849-1 Can reach SIL 3 EN/IEC 62061 |
| Function Of Module | 0 functions disabled (factory setting) 1 emergency stop monitoring 1-channel wiring, category 2 10 enabling grip switch monitoring (3-position switch), category 4 11 sensing mat and edges monitoring, category 3 12 sensing mat and edges monitoring, category 3 13 relay output safety light curtain monitoring, category 4 14 coded magnetic switch monitoring, category 4 15 coded magnetic switch monitoring, category 4 2 emergency stop monitoring 1-channel wiring, category 2 3 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 4 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 5 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 6 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 7 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 8 emergency stop monitoring 2-channel wiring, or guard monitoring, category 4 9 guard monitoring for injection presses and blowing machines, category 4 |
| Synchro Time Between Inputs | 0.5 s 13) 1.5 s 14) 1.5 s 15) 1.5 s 5) 1.5 s 6) 1.5 s 9) Unlimited 3) Unlimited 4) Unlimited 7) Unlimited 8) |
| Power Consumption In W | 5 W |
| Input Protection Type | Internal, electronic |
| Uc Control Circuit Voltage | 24 V |
| Line Resistance | 100 Ohm <6561.68 ft (2000 m) |
| Number Of Safety Circuits | 3 NO relays per function (6 NO total), volt-free |
| Number Of Additional Circuits | 3 solid state outputs |
| Breaking Capacity | 180 VA holding AC-15 C300 relay output 1800 VA inrush AC-15 C300 relay output |
| Breaking Capacity | 20 mA 24 V static output circuit 1.5 A 24 V DC-13)50 ms relay output |
| Output Thermal Current | 2 A for 1 output and 4 A for the other 2 outputs relay 3.3 A for all 3 outputs relay simultaneously 6 A for 1 output and 2 A for the other 2 outputs relay |
| Ith Cnvtl Free Air Therm Crrt | 20 A |
| Associated Fuse Rating | 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 6 A fast blow relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum Output Current | 10 mA relay output |
| Minimum Output Voltage | 17 V relay output |
| Response Time On Input Open | 30 ms |
| Ui Rated Insulation Voltage | 300 V 2)EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Uimp Rated Imp Wstd Voltage | 4 kV III EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Local Signalling | 12 LEDs |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.49 in (114 mm) |
| Height | 3.90 in (99 mm) |
| Width | 1.77 in (45 mm) |
| Product Weight | 0.71 lb(US) (0.32 kg) |
| IP Degree Of Protection | IP20 terminals) IP40 enclosure) |
| Ambient Air Temp For Op | 14…131 °F (-10…55 °C) |
| Ambient Air Temp For Storage | -13…185 °F (-25…85 °C) |
| Category | 22477 - SAFETY MODULES (PREVENTA) |
| Discount Schedule | SAF2 |
| GTIN | 00785901528005 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pvc Free | Yes |
| Warranty | 18 months |
