| Range Of Product |
Modicon MC80 |
| Product Or Component Type |

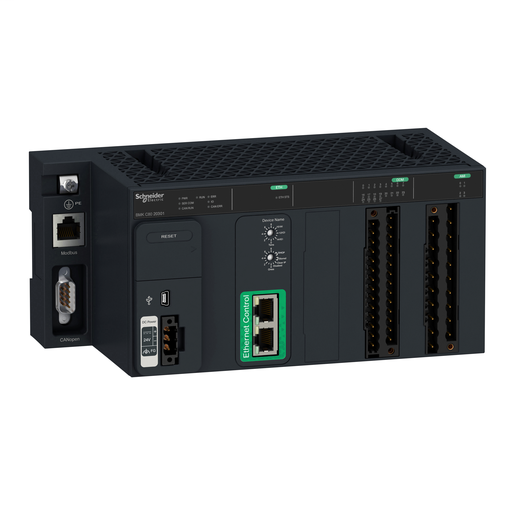

Processor module |
| Product Specific Application |
Thermo solar - parabolic through |
| Product Compatibility |
BMXFTB20... terminal block analog input module
BMXFTB28... terminal block discrete I/O module |
| [Us] Rated Supply Voltage |
24 V - 15...20 % DC |
| Current Consumption |
<= 700 mA |
| ISOlation Voltage |
1500 V DC |
| Memory Description |
Internal RAM 3840 kB
Internal RAM 128 kB data
Internal RAM 3590 kB program constants and symbols |
| Execution Time Per Instruction |
0.06 µs Boolean
0.08 µs mixed |
| Realtime Clock |
With |
| Function Available |
Memory retention without battery |
| Communication Port Protocol |
1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 247
1 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16
2 Ethernet RJ45 10/100 Mbit/s |
| Integrated Connection Type |
USB port mini B USB |
| Port Ethernet |
10BASE-T/100BASE-TX |
| Bus Length |
0.00…32.81 ft (0…10 m) serial link non isolated
0.00…49.21 ft (0…15 m) serial link non isolated
0.00…3280.84 ft (0…1000 m) serial link isolated with external isolation tap
0.00…65.62 ft (0…20 m) 1 Mbit/s CANopen
0.00…8202.10 ft (0…2500 m) 20 kbit/s CANopen
0.00…328.08 ft (0…100 m) Ethernet |
| Communication Service |
Read/write variables Modbus
Diagnostics Modbus
Send/receive character string character mode
Process Data Object (PDO) CANopen
Service Data Object (SDO) CANopen
FDR client Ethernet
SNMP Ethernet
RSTP support Ethernet |
| Discrete Input Number |
8 positive logic (sink) |
| Discrete Input Type |
Type 3 |
| Discrete Input Current |
2.4 mA |
| Discrete Input Voltage |
19...30 V DC |
| Discrete Output Number |
12 positive |
| Discrete Output Current |
2 A per output
10 A per module |
| Discrete Output Voltage |
19...30 V DC |
| Protection Type |
Overload protection output
Short-circuit protection output |
| Analogue Input Number |
4 |
| Analogue Input Type |
Current - 20...20 mA
Voltage - 10...10 V |
| Fast Read Cycle Time For Analogue Input |
1.3 ms + 1.3 ms x number of channels used |
| Nominal Read Cycle Time For Analogue Input |
6.5 ms for 4 channels |
| Analogue Input Resolution |
16 bits |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Relative Humidity |
0…95 % |
| Vibration Resistance |
3 gn |
| Marking |
CE |
| Standards |
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D
UL 508
IEC 61131-2
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 142
CSA C22.2 No 213 Class I Division 2 Group A |
| Product Certifications |
RCM |
| GTIN |
03606485432045 |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
