| Range Of Product |
Harmony Hub |
| Product Or Component Type |

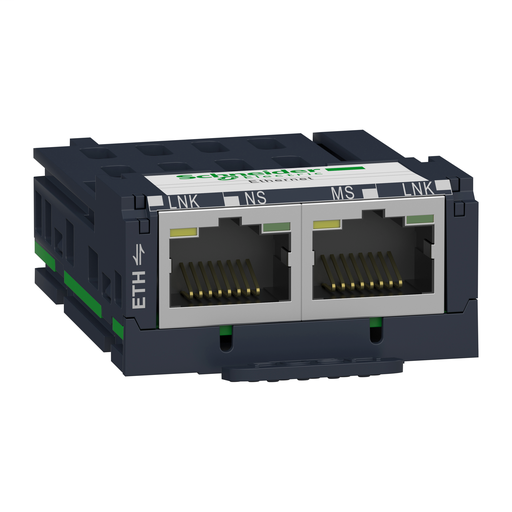

Communication module |
| Device Short Name |
ZBRCETH |
| Communication Port Protocol |
Modbus TCP |
| Integrated Connection Type |
Ethernet RJ45 - 2 twisted pairs - class D |
| Transmission Rate |
10/100 Mbit/s |
| Communication Service |
Static IP
DHCP, Modbus TCP/IP
BOOTP |
| Physical Interface |
RJ45 - 10BASE-T
RJ45 - 100BASE-TX |
| Marking |
CE |
| Local Signalling |
Transmission activity 1 LED
Reception activity (RX) 1 LED
Module status 1 LED
Network status 1 LED |
| Product Destination |
ZBRN1 wireless Harmony Hub |
| Product Weight |
0.10 lb(US) (0.044 kg) |
| Product Certifications |
CSA
UL 508
BTL
UL 873
UL 60730-1 |
| Electromagnetic Compatibility |
EMC immunity EN/IEC 61000-6-1
EMC immunity level 2 EN/IEC 60730-1
Electrostatic discharge level 3B IEC 61000-4-2
Radiated RF fields level 3A IEC 61000-4-3
Electrical fast transient/burst immunity test level 4B IEC 61000-4-4
Surge immunity test level 3 IEC 61000-4-5
Conducted RF disturbances level 3A IEC 61000-4-6
Conducted EMC level 2 EN/IEC 60730-1
Conducted EMC EN/IEC 61000-6-3
EMC immunity IEC 61800-3
Conducted EMC IEC 61800-3 category C1 |
| IP Degree Of Protection |
IP20 |
| Ambient Air Temp For Op |
-4…149 °F (-20…65 °C) |
| Ambient Air Temp For Storage |
-13…158 °F (-25…70 °C) |
| Relative Humidity |
5…95 % without condensation |
| Pollution Degree |
2 |
| Operating Altitude |
0...6561.68 ft (0...2000 m) |
| Storage Altitude |
0.00…10000.00 ft (0…3048 m) |
| Vibration Resistance |
1.5 mm 3…13 Hz)
1 mm 13…23 Hz)
2 gn 23…150 Hz) |
| Shock Resistance |
15 gn 11 ms |
| Category |
22470 - XB5R WIRELESS PUSH BUTTON |
| Discount Schedule |
I |
| GTIN |
00785901149590 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
IN |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
