1006385B

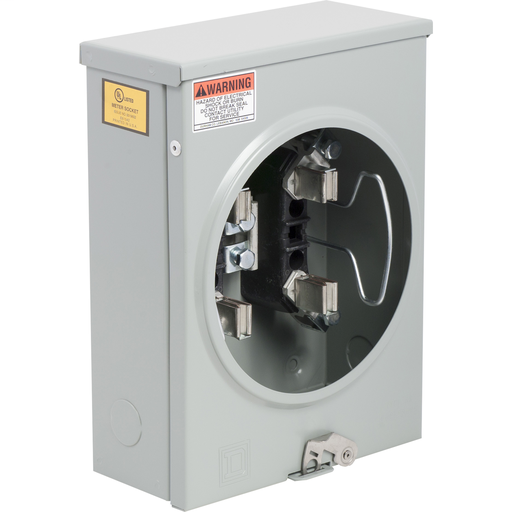

METER SOCKET 125A 1PH SOLID
Specifications
| Part Number | 1006385B |
|---|---|
| Country of Origin | US |
| UPC | 785901572398 |
| UPC11 | 78590157239 |
| EAN | 0785901572398 |
| Availability | S |
| Lead Time | 3 |
| Retail Flag | true |
| UNSPSC | 39121102 |
| ECCN | EAR99 |
| HTs Code | 8538908160 |
| Prop 65 | This product can expose you to chemicals including: Nickel (Metallic) and Toluene which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | DE4 |
| Return Indicator | Yes |
Characteristics
| Product Or Component Type | Meter Socket |
|---|---|
| Meter Socket Type | Ringless |
| Hub Type | Solid top |
| Meter Socket Rated Current | 125 A |
| Number Of Jaws | 4 without jaw release |
| Bypass Type | No bypass |
| Network Number Of Phases | 1 phase |
| Ue Rated Operational Voltage | 600 V AC |
| Enclosure Material | Steel |
| Electrical Connection | Lugs 0.5" hex |
| Service Feed Location | UG |
| Wiring Configuration | 3-wire |
| Device Mounting | Surface |
| Awg Gauge | AWG 8...AWG 2/0 aluminium/copper)line side AWG 8...AWG 2/0 aluminium/copper)service ground |
| Product Certifications | UL Listed |
| Enclosure Rating | NEMA 3R |
| Category | 00039 - METER SOCKETS & HUBS |
| Discount Schedule | DE4 |
| GTIN | 00785901572398 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | US |
| EU RoHs Directive | Under investigation |
| Warranty | 18 months |
