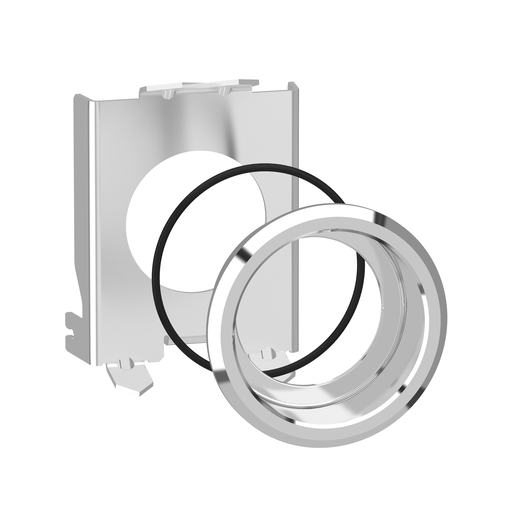

Metal flush mounting kit for Ø22 selector switch and ill.pushbutton
This Harmony XB4, flush mounting kit has a chromium plated color. This kit allows to flush mount any pushbuttons or pilot lights of the XB4 series. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Allows prevention of injury and damage on signalling units by concealing the unit beneath the level of the panel surface.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BZ022 |
|---|---|
| Country of Origin | FR |
| UPC | 785901744412 |
| UPC11 | 78590174441 |
| EAN | 3606485440217 |
| Availability | N |
| Lead Time | 20 |
| HTs Code | 8538908180 |
| Discount Schedule | CP10 |
| Return Indicator | No |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Flush mounting kit |
| Accessory / Separate Part Cate | Mounting and fixing accessory |
| Accessory / Separate Part Dest | Selector switch high bezel high guard Illuminated push-button high bezel high guard |
| Product Compatibility | ZB4BK ZB4BD.8 ZB4BD ZB4BD.9 ZB4BJ ZB4BH..3 ZB4BA.6 ZB4BW |
| Surface Finish | Chromium plated |
| IP Degree Of Protection | IP66 IEC 60529 front face) IP69 IEC 60529 front face) IP69K DIN 40050-9 front face) |
| IK Degree Of Protection | IK06 IEC 50102 |
| Mounting Diameter | 1.20 in (30.5 mm) |
| Quantity Per Set | Set of 1 |
| Category | 18079 - SPARE PARTS DISCOUNT CP10 |
| Discount Schedule | CP10 |
| GTIN | 00785901744412 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Under investigation |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
