2510MBW12V06P11

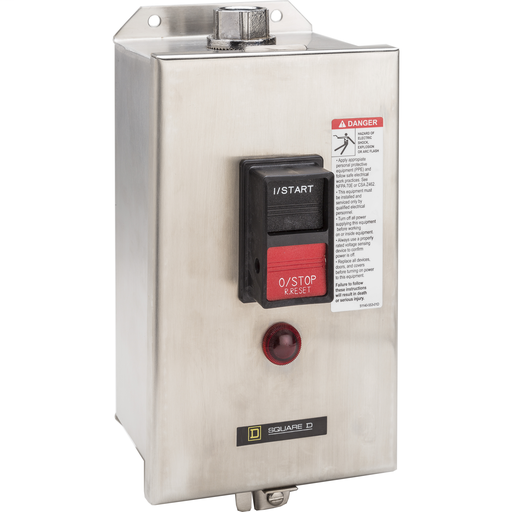

Manual Starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5 HP at 380/575VAC, three phase, red indicator, NEMA 4/4X
Specifications
| Part Number | 2510MBW12V06P11 |
|---|---|
| Country of Origin | MX |
| Availability | N |
| Lead Time | 8 |
| UNSPSC | 39121521 |
| HTs Code | 8536504000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | No |
| Depth | 5.76 inch |
| Height | 10.92 inch |
| Width | 5.78 inch |
Characteristics
| Product | Manual Starter |
|---|---|
| Type | M |
| Nema Size | M-0 |
| Control Unit | Push-button |
| Pilot Light | Red indicator, 480 V |
| Horsepower Rating | 3 hp 200...230 V AC, 3 phase 5 hp 380...575 V AC, 3 phase |
| Voltage Rating | 600 V AC |
| Number Of Poles | 3P |
| Starter Type | Non reversing |
| Electrical Connection | Pressure wire clamp |
| Overload Relay Type | Melting alloy |
| Number Of Thermal Units Required | 3 |
| Wire Gauge | AWG 14...AWG 8 copper |
| Auxiliary Contacts | Without |
| Height | 10.92 in (277.37 mm) |
| Width | 5.78 in (146.81 mm) |
| Depth | 5.76 in (146.30 mm) |
| Certifications | UL listed file E42243 CCN NLRV CSA LR60905 class 3211 05 |
| Nema Enclosure Rating | NEMA 4/4X brushed stainless steel |
| Category | 21103 - 2510,2511,2512 M,T |
| Discount Schedule | CP1 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
