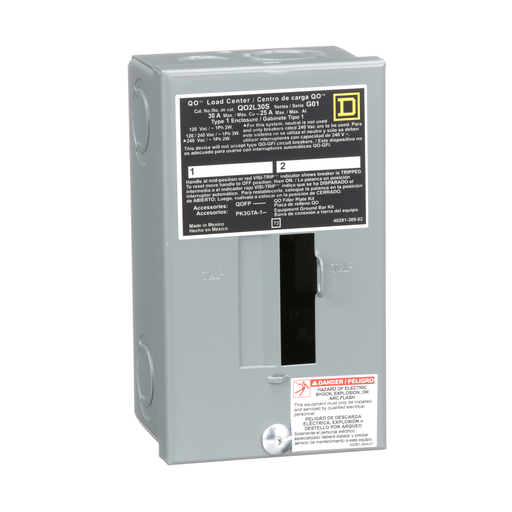

QO2L30S
LOAD Center QO MLO 240V 30A 1PH 2SP
QO® Circuit Breaker Load Centers, QO2L30S, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | QO2L30S |
|---|---|
| Country of Origin | MX |
| UPC | 785901785071 |
| UPC11 | 78590178507 |
| EAN | 0785901785071 |
| Availability | S |
| Retail Flag | true |
| UNSPSC | 39121101 |
| HTs Code | 8537109150 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | DE3A |
| Return Indicator | Yes |
| Height | 6.73 inch |
| Width | 3.82 inch |
Characteristics
| Marketing Trade Name | QO |
|---|---|
| Product | Load Center |
| Cover Type | Surface cover |
| Tightening Torque | Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper Main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper |
| Load Center Type | Main lugs |
| In Rated Current | 30 A |
| Number Of Spaces | 2 |
| Max Short Circuit Current Rating | 10 kA |
| Maximum Number Of Single Pole Circuits | 2 |
| Number Of Phases | 1 phase |
| Voltage Rating | 120/240 V AC |
| Wire Size | AWG 14...AWG 10 copper AWG 12...AWG10 aluminium |
| Electrical Connection | Lugs |
| Grounding Bar | Grounding bar (ordered separately) |
| Wiring Configuration | 3-wire |
| Busbar Material | Tin plated aluminium busbar |
| Enclosure Material | Welded sheet steel |
| Cover Finish | Baked enamel Gray |
| Box Number | 1 |
| Height | 6.73 in (171 mm) |
| Width | 3.82 in (97 mm) |
| Enclosure Rating | NEMA 1 indoor |
| Ambient Air Temp For Op | 23 °F (-5 °C) 104 °F (40 °C) |
| Product Certifications | UL Listed |
| Category | 00101 - QO 1PH LC,2-8CKT,NEMA 1,3R |
| Discount Schedule | DE3A |
| GTIN | 00785901785071 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
